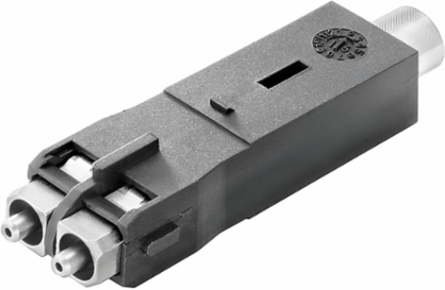

Weidmuller 2564960000 IE-PI-SCRJ-POF-QA
- MPN: 2564960000
- PPN: WDM-2564960000
CAD
$76.27
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SC insert, Plug SCRJ, POF
Documentation & Downloads
Specifications
General Data
| Colour | Miscellaneous |
|---|---|
| Connection 1 | SCRJ |
| Dust protection cap material | TPE |
| Housing main material | PA 66 |
| Plugging cycles | ≥ 500 |
| Sheath diameter, max. | 8 mm |
| Single conductor diameter, max | 2.3 mm |
| Type of mounting | Screw mounting |
| Configuration | Connector and flange insert for variant 1, 4 and 14 housings |
|---|---|
| Description of article | Plug SCRJ, POF |
| Ferrule material | Arcap |
| Insertion loss | ≤ 1.0 dB |
| Protection degree | IP67 with housing |
| Sheath diameter, min. | 5 mm |
| Single conductor diameter, min | 2.1 mm |
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 13 g |
|---|
Standards
| Connector standard | IEC 61754-24 |
|---|
Classifications
| ETIM 6.0 | EC001122 |
|---|---|
| eClass 9.0 | 19-17-01-22 |
| eClass 10.0 | 19-17-01-22 |
| ETIM 7.0 | EC001122 |
|---|---|
| eClass 9.1 | 19-07-01-22 |
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
