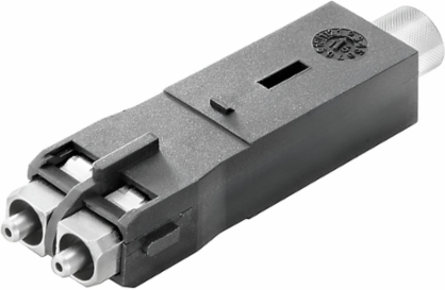

Weidmuller 1067410000 IE-PI-SCRJ-POF
- MPN: 1067410000
- PPN: WDM-1067410000
CAD
$74.16
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SC insert, Plug SCRJ, POF
Documentation & Downloads
Specifications
General Data
| Colour | Miscellaneous |
|---|---|
| Connection 1 | SCRJ |
| Description of article | Plug SCRJ, POF |
| Insertion loss | ≤ 1.0 dB |
| Protection degree | IP67 with housing |
| Configuration | Connector and flange insert for variant 1, 4 and 14 housings |
|---|---|
| Connection 2 | Crimp |
| Housing main material | Zinc diecast, PA |
| Plugging cycles | 1000 |
Approvals
| Approvals | UL |
|---|---|
| UL File Number Search | E477798 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Net weight | 18.7 g |
|---|
Standards
| Connector standard | IEC 61754-24 |
|---|
| Certificate No. (UL) | E477798 |
|---|
Classifications
| ETIM 6.0 | EC001122 |
|---|---|
| eClass 9.0 | 19-17-01-22 |
| eClass 10.0 | 19-17-01-22 |
| ETIM 7.0 | EC001122 |
|---|---|
| eClass 9.1 | 19-07-01-22 |
Environmental Product Compliance
| REACH SVHC | Lead 7439-92-1 |
|---|
Temperatures
| Operating temperature, max. | 70 °C |
|---|---|
| Operating temperature | -40 °C...70 °C |
| Operating temperature, min. | -40 °C |
|---|
