Weidmuller 1518080000 IE-PS-RJ45-FH-90-A-1.1
- MPN: 1518080000
- PPN: WDM-1518080000
CAD
$53.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

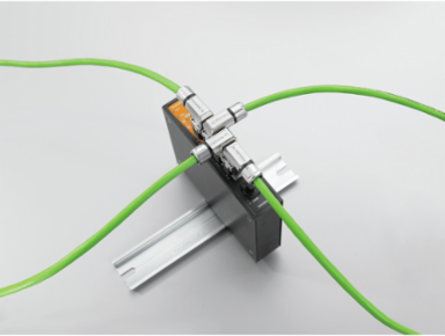

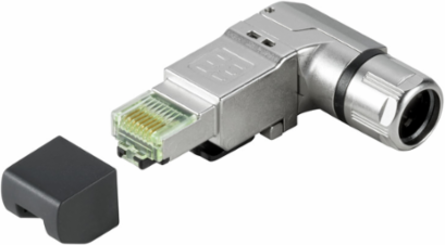

RJ45 plug, no tools required, angled, 4x90°, Cat.6A / Class EA (ISO/IEC 11801 2010), EIA/TIA T568 A
Documentation & Downloads
Specifications
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Insulation strength
- > 500 MΩ
Current-carrying capacity at 50 °C1 A
Dielectric strength, contact / shield≥ 1500 V DC
PoE / PoE+conforming to IEEE 802.3at
General Data
- Connection 1
- RJ45
- Wiring
- EIA/TIA T568 A
- Speed
- 10 GBit
- Insulation cross-section, max.
- 1.1 mm
- Contact surface
- Gold over nickel
- Conductor connection cross-section, solid (AWG)
- AWG 26...AWG 24
- Conductor connection cross-section, flexible (AWG)
- AWG 27...AWG 24
- Conductor connection cross-section, extremely flexible (AWG)
- AWG 26, Approval of the cable by Weidmüller necessary
- Sheath diameter, max.
- 9 mm
- Protection degree
- IP20
Connection 2Piercing
Housing main materialZinc diecast, nickel-plated
Insulation cross-section, min.0.85 mm
CategoryCat.6A / Class EA (ISO/IEC 11801 2010)
Connection diameter, solid0.41...0.51 mm
Connection diameter, flexible0.46...0.61 mm
Conductor connection cross-section, extremely flexible0.51, Approval of the cable by Weidmüller necessary
Sheath diameter, min.5 mm
Shielding360° all-round enclosure
Plugging cycles750
Approvals
- Approvals
- CULUS, DNV GL
- UL File Number Search
- E471884
ROHSConform

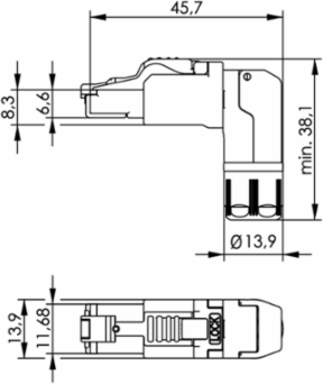

Dimensions And Weights
- Net weight
- 30 g
Standards
- Connector standard
- IEC 60603-7-51
Certificate no. (cULus)E471884
Classifications
- ETIM 6.0
- EC001121
- eClass 9.0
- 27-44-03-90
- eClass 10.0
- 27-44-03-90
ETIM 7.0EC001121
eClass 9.127-44-03-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 85 °C
- Operating temperature
- -40 °C...85 °C
Operating temperature, min.-40 °C
