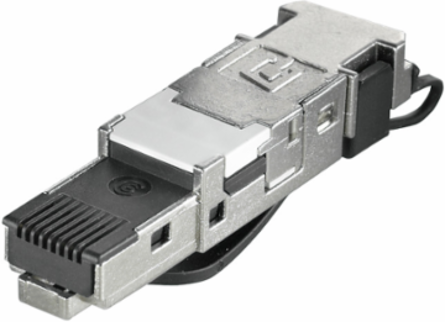

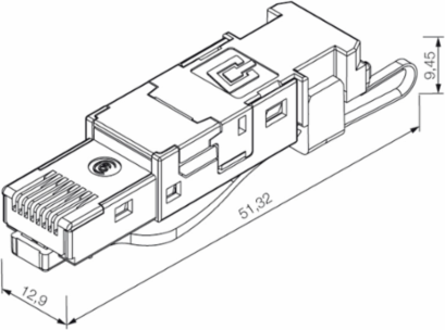

Weidmuller 1132040000 IE-PS-RJ45-FH-BK-A
- MPN: 1132040000
- PPN: WDM-1132040000
CAD
$39.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
RJ45 plug, no tools required, Cat.6A / Class EA (ISO/IEC 11801 2010), 8-core, EIA/TIA T568 A
Documentation & Downloads
Specifications
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Insulation strength
- > 500 MΩ
Current-carrying capacity at 50 °C1 A
Dielectric strength, contact / shield≥ 1500 V DC
PoE / PoE+conforming to IEEE 802.3at
General Data
- Fire load
- 77 kJ
- Connection 1
- RJ45
- Wiring
- 8-core, EIA/TIA T568 A
- Speed
- 10 GBit/s
- Insulation cross-section, max.
- 1.6 mm
- Contact material
- Phosphorus bronze
- Connection diameter, solid
- 0.41...0.64 mm
- Wire cross-section, solid, min.
- 0.128 mm²
- Conductor connection cross-section, solid
- 0.13...0.32 mm²
- Conductor connection cross-section, flexible (AWG)
- AWG 26/7...AWG 22/7
- Wire connection cross section, finely stranded, max.
- 0.355 mm²
- Conductor connection cross-section, extremely flexible
- , Approval of the cable by Weidmüller necessary
- MICE classification M
- M1
- MICE classification C
- C1
- Sheath diameter, min.
- 5.5 mm
- Shielding
- 360° all-round enclosure
- Insertion force
- ≤ 30 N
- Material insulator
- PA UL94-V0
HalogenNo
Connection 2IDC
Housing main materialZinc diecast
Insulation cross-section, min.0.85 mm
CategoryCat.6A / Class EA (ISO/IEC 11801 2010)
Contact surfaceGold over nickel
Conductor connection cross-section, solid (AWG)AWG 26/1...AWG 22/1
Wire cross-section, solid, max.0.324 mm²
Connection diameter, flexible0.48...0.76 mm
Wire connection cross-section, finely stranded, min.0.141 mm²
Conductor connection cross-section, flexible0.14...0.35 mm²
Conductor connection cross-section, extremely flexible (AWG), Approval of the cable by Weidmüller necessary
MICE classification II1
MICE classification EE3
Sheath diameter, max.8.5 mm
Protection degreeIP20
Plugging cycles750
Ability to reconnect≥ 10 cycles (for the same or larger cross-section)
Approvals
- Approvals
- CULUS
- UL File Number Search
- E316369
ROHSConform
Dimensions And Weights
- Net weight
- 25.5 g
Standards
- Generic communication cable facilities
- ANSI / TIA / EIA-568-B.2-10, DIN EN 61918 Draft 02.2007, ISO / IEC 11801:2002, ISO / IEC 24702:2006
- IP protection classes
- IEC 60529
- UL standard for communication accessories
- UL 1863
Application-specific communication cable facilitiesPROFINET installation instructions
Connector standardIEC 60603-7-51
Certificate no. (cULus)E316369
Classifications
- ETIM 6.0
- EC001121
- eClass 9.0
- 27-44-03-90
- eClass 10.0
- 27-44-03-90
ETIM 7.0EC001121
eClass 9.127-44-03-90
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Operating temperature, max.
- 70 °C
- Operating temperature
- -40 °C...70 °C
Operating temperature, min.-40 °C
