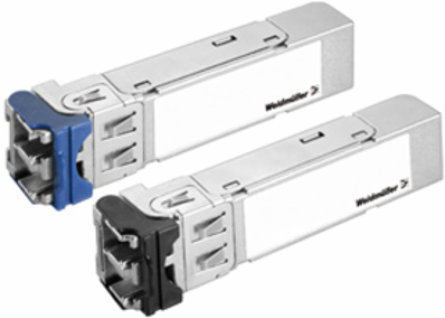

Weidmuller 1241450000 SFP Transceiver, 1 Port, Fast Ethernet, 4 km Range, -40 to 85 C Operating Temp
- MPN: 1241450000
- PPN: WDM-1241450000
CAD
$417.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
SFP Transceiver, Number of ports: Fast Ethernet, multi-mode, LC connector, 4 km, -40 °C...85 °C
Documentation & Downloads
Specifications
Fibre Optic Fast Ethernet
- Link budget Fast Ethernet
- 26 dB
- Min. TX Fast Ethernet
- -8 dBm
- System reserve Fast Ethernet
- 0 dBm
- Wavelength Fast Ethernet
- 1,300 nm
Max. TX Fast Ethernet-18 dBm
Receive sensitivity Fast Ethernet-34 dBm
Typical distances Fast Ethernet4 km (50/125 μm or 62.5/125 μm, 800 MHz * km @ 1300 nm multi-mode fibre optic cable)
Approvals
- Approvals
- cURus, DNV GL
- UL File Number Search
- E230683
ROHSConform
Dimensions And Weights
- Net weight
- 67 g
Environmental Conditions
- Humidity
- 5 to 95 % (non-condensing)
- Operating temperature, min.
- -40 °C
- Storage temperature, min.
- -40 °C
Operating temperature, max.85 °C
Storage temperature, max.85 °C
Guarantee
- Time interval
- 3 years
Classifications
- ETIM 6.0
- EC001121
- eClass 9.0
- 27-44-03-92
- eClass 10.0
- 27-44-03-92
ETIM 7.0EC001121
eClass 9.127-44-02-92
Technical Data
- Type of mounting
- Insert in SFP slot
Emc Conformity And Approvals
- Security
- UL, TÜV
Ship useDNV-GL
Interfaces
- Ethernet ports
- 1
- Plug-in connector
- Duplex-LC
Number of portsFast Ethernet, multi-mode, LC connector, 4 km
Power Supply
- Voltage supply
- 3.3 V (via Ethernet switch)
