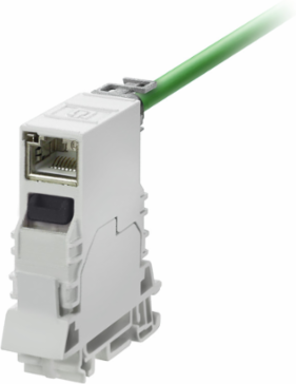

Weidmuller 8946930000 IE-TO-RJ45-FJ-A
Weidmuller 8946930000 IE-TO-RJ45-FJ-A
- MPN: 8946930000
- PPN: WDM-8946930000
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$53.25/ EA
Description
Mounting rail outlet, RJ45, EIA/TIA T568 A, IP20
Specifications
Electrical Properties
- Contact resistance
- ≤ 20 mΩ
- Dielectric strength, contact / contact
- ≥ 1000 V DC
- Insulation strength
- 500 MΩ
Current-carrying capacity at 50 °C1 A
Dielectric strength, contact / shield≥ 1500 V DC
PoE / PoE+conforming to IEEE 802.3at
General Data
- Connection 1
- RJ45
- Configuration
- Switchable volt. connection from module/coupling to mounting rail
- Colour
- Light Grey
- Vibration resistance acc. to IEC 60512-4
- 50 ms-2 sinusoidal (9…500 Hz)
- Housing main material
- PA UL 94 V0
- Category
- Cat.6A / Class EA (ISO/IEC 11801 2010)
- Contact surface
- Au ≥ 0.8 µm
- Conductor connection cross-section, solid (AWG)
- AWG 24...AWG 22
- Conductor connection cross-section, flexible (AWG)
- AWG 26...AWG 22
- Sheath diameter, max.
- 10 mm
- Protection degree
- IP20
- Ability to reconnect
- ≥ 10 cycles for AWG 23-26, ≥ 4 cycles for AWG 22
Connection 2IDC
WiringEIA/TIA T568 A
Shock resistance acc. to IEC 60512-4250 ms-2
Humidity0...93 % rel. humidity
Insulation cross-section, max.1.6 mm
Contact materialSpring steel, Ni 1.2 µm
Connection diameter, solid0.4...0.64 mm
Connection diameter, flexible0.48...0.76 mm
Sheath diameter, min.5.5 mm
Type of mountingTS 35
Plugging cycles750
Approvals
- Approvals
- EAC
ROHSConform

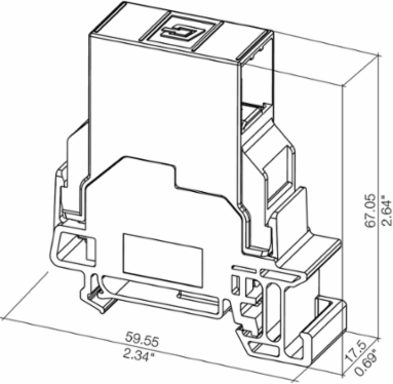

Dimensions And Weights
- Net weight
- 5.42 g
Standards
- Connector standard
- IEC 60603-7-51
Classifications
- ETIM 6.0
- EC000313
- eClass 9.0
- 27-44-03-20
- eClass 10.0
- 27-44-03-20
ETIM 7.0EC000313
eClass 9.119-17-01-25
UNSPSC30-21-18-01
Environmental Product Compliance
- REACH SVHC
- Lead 7439-92-1
Temperatures
- Humidity
- 0...93 % rel. humidity
- Operating temperature, min.
- -40 °C
- Temperature range, installation, min.
- -25 °C
Operating temperature, max.70 °C
Operating temperature-40 °C...70 °C
Temperature range, installation, max.70 °C
