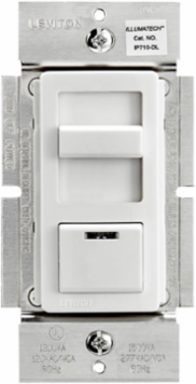

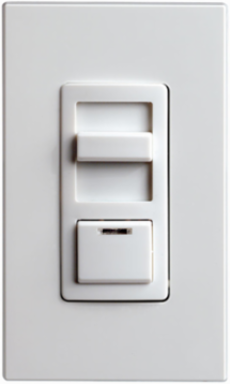

Leviton IP710-DLZ IllumaTech 0-10V Dimmer Switch 1200VA, 1500VA @ 277VAC, LED Locator Light
- MPN: IP710-DLZ
- UPC: 078477282380
- PPN: LEV-IP710-DLZ
CAD
$218.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
IllumaTech Slide Preset Electro-Mechanical 0-10V Slide Dimmer for use with LED or Fluorescent Ballasts and Power Supplies with LED locator light, suitable for use with Class 1 or Class 2 wiring, 1200VA @ 120VAC, 1500VA @ 277VAC, 10A LED/Electronic Ballast 120/277VAC, 60Hz, 50mAmps maximum sinking current, single pole or 3-way control when used with 3-way switch - White, Ivory & Light Almond
Features
- Designed specifically for use with LED fixtures using 0-10V power supplies and Mark 7® 0-10V fluorescent ballasts
- Dual voltage 120V/277V; 50mAmps maximum sink current
- No power pack required for switching
- Provides single pole or 3-way lighting control when used with a 3-way switch
- Compatible with Decora Plus™ screwless and Decora standard designer wallplates (sold separately)

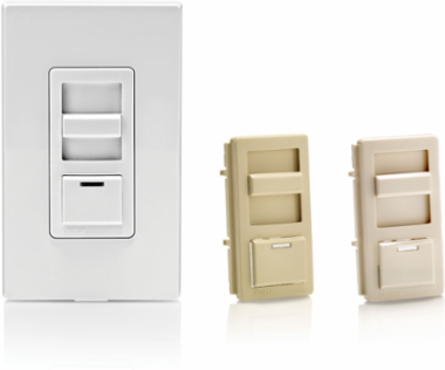

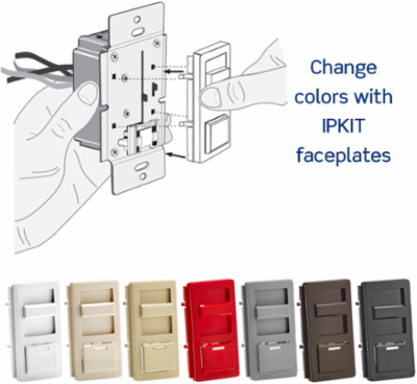

- Change the color using IPKIT faceplates available in white, ivory, light almond, gray, black, brown and red

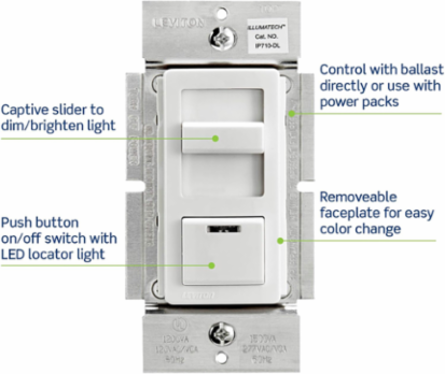

- Fluid slide movement allows fine adjustment of light level with minimal effort
- Captive wraparound slide bar remains securely attached
- INNOVATIVE – Designed for use with LED fixtures using 0-10V power supplies for dimming lighting in commercial spaces such as hotels, restaurants, offices and other public spaces
- ADVANCED – No power pack required for switching
- EXCEPTIONAL – Superior quality and dimming performance
- CONVENIENT – Separate on/off switch allows you to set and keep preferred dimming level
- STYLISH – Easily change the color using IPKIT faceplates available in white, ivory, light almond, gray, black, brown and red
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Action | Standard ON/OFF |
|---|---|
| Color | White, Ivory, Light Almond |
| Device Type | Dimmer |
| Light | LED Locator Light |
| Load Type | Electronic 0-10VDC Fluorescent and 0-10VDC LED Power Supply |
| Preset | Preset |
| Standards and Certifications | cCSAus |
| Switch Type | Single-Pole & 3-Way |
| Voltage | 120/277 VAC |
| Warranty | 5-Year Limited |
| Available Color Kits | Ivry-I Wht-W Gry-G Blk-E Brwn-B Light Almond-T, R-Red |
|---|---|
| Color Change Kit | IPKIT Series |
| Frequency | 60 Hz |
| Load Rating | 1200VA |
| Ordering Notes | Incl White, Ivory and Light Almond Color Kit |
| Protection | Radio/TV Filter |
| Style Name | IllumaTech |
| Type | Slide |
| Wallplate | Order Separately |
