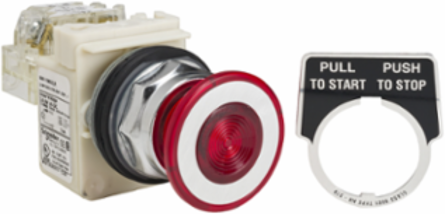

Square D 9001KR9P35LRRH13 Illuminated Push Button, Metal Mushroom 41mm, 30mm, 24-28V, LED Red
Square D 9001KR9P35LRRH13 Illuminated Push Button, Metal Mushroom 41mm, 30mm, 24-28V, LED Red
- MPN: 9001KR9P35LRRH13
- UPC: 785901034247
- PPN: SCH-9001KR9P35LRRH13
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$438.94/ EA
Description
This circular shape push-button is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to its clear colors It is impact resistant, dust resistant, water resistant and vibration resistant, making it ideal for operation in harsh environments It is easily installed into a standard 30mm diameter panel cut-outs and easily connected with control circuits It weights 0.19 kg High performance International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 6, 12 and 13)
Specifications
Specifications
- Operator Additional Information
- screw-on plastic
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony 9001K
Device Short NameK
Complementary
- [Us] Rated Supply Voltage
- 24...28 V
- Bezel Material
- metal
- Contact Operation
- standard
- Operator Position Information
- 2 positions
- Light Block Supply
- without supply
- Operator Profile
- mushroom Ø 41 mm
- Cap/Operator Or Lens Colour
- red
- Bulb Base
- BA 9s
Contacts Type And Composition1 C/O
[Ie] Rated Operational Current10 A, AC-15 || 10 A, DC-13
Light Source Colourred
Light SourceLED
Mounting Diameter30 mm
Type Of Operatorpush-pull
Size30 mm
Device Presentationcomplete product
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Environment
- Product Certifications
- NEMA || CSA LR 25490 class 3211 03 || UL listed file E42259 CCN NKCR || CE
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/6/12/13
