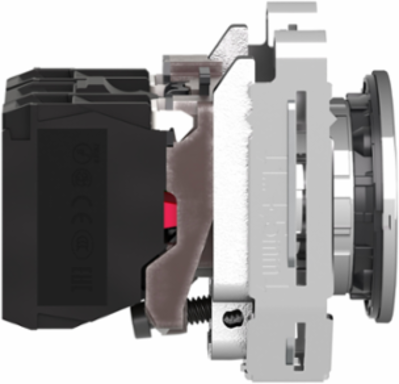

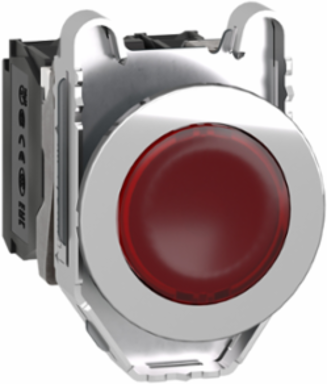

Schneider Electric XB4FW34M5 Illuminated Push Button 30mm Red Flush Mounted 1NO + 1NC 230V AC
- MPN: XB4FW34M5
- PPN: SCH-XB4FW34M5
CAD
$141.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Illuminated Push Button 30mm Red Flush Mounted 1NO + 1NC 230V AC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France
Depth55 mm
Physical Attributes
- Cap Operator Or Lens Color
- red
Important Information Attributes
- Customizable
- 1, no
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Shape Of Screw Head
- cross Philips no 1, cross pozidriv No 1slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
- Supply Voltage
- 230...240 V
- Certificate Agency
- UL Listed, CSA, CCC, EAC
- [Us] Rated Supply Voltage
- 230...240 V, 230...240 V AC 50/60 Hz
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0201550877, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0185242105, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 2.6788902959
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1808008EN
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Average Percentage Of Recycled Plastic Content
- 28 %
- Bulb Base
- integral LED
- Contact Operation
- slow-break
- Contacts Type And Composition
- 1 NO + 1 NC
- Current Consumption
- 14 mA
- Electrical Shock Protection Class
- class I conforming to IEC 60536
- Fixing Collar Material
- zamak
- Gcr Bridge
- XB4FWCUST01
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
- Mechanical Durability
- 10000000 cycles
- Operating Travel
- 1.5 mm NC changing electrical state)2.6 mm NO changing electrical state)4.3 mm total travel)
- Operator Profile
- red flush
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Repair Index
- A
- Range Of Product
- Harmony XB4
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-28 kV in free air (in insulating parts) IEC 61000-4-2
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Sale Per Indivisible Quantity
- 1
- Shape Of Signaling Unit Head
- round
- Software Version
- v5.9.4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 4 kg CO2 eq.
- Vibration Resistance
- 5 gn (f= 10-500 Hz) conforming to IEC 60068-2-62 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
- Pep Code
- ENVPEP1808008_V2-EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Height Nominal
- 47 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A IEC 60947-5-1
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-1
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Nbr. Of Units In Pkg.
- 1
- Product Repair Index - Dam Document Id
- XB4BS8442-ENVREPAIR-A-EN
- Warranty (In Months)
- 18
- Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Benefits/Loads Beyond System Boundaries [D]
- -0.1484
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Operating Force3.5 N NC changing electrical state, 3.8 N
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-2750 gn 11 ms) half sine wave acceleration IEC 60068-2-27, 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Cap Operator Or Lens Colorred
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-16 A 120 V, AC-15, A600 IEC 60947-5-10.1 A 600 V, DC-13, Q600 IEC 60947-5-10.27 A 250 V, DC-13, Q600 IEC 60947-5-10.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Terminals Description Iso N°1(13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC, (13-14)NO, (21-22)NC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.2 kg CO2 eq., 0.2099140351
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.9482789474
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Average Percentage Of Recycled Metal Content17 %
Bezel Materialchromium plated metal
Compatibility CodeXB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Device Short NameXB4F
Electromagnetic Emissionclass B IEC 55011
Fixing Modeby screws 0.8 N.m
Head Typebuilt-in-flush
Light Sourceuniversal LED
Mounting Diameter30.5 mm
Operator Additional Informationwith plain lens
Positive Openingwith IEC 60947-5-1 appendix K
Product Or Component Typeilluminated push-button
Protective TreatmentTH
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityYes
Service Life100000 h at rated voltage and 25 °C
Signalling Typesteady
Supply Voltage Limits195-264 V AC
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorspring return
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionHarmony XB4 illuminated modular green push button operates with a spring return mechanism uses a universal LED. It has a metal bezel. This illuminated push button provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It has power consumption of 0.436 W with use rate of 71% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Width Nominal36.6 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourred
Short-circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)126.000 g
Take-backNo
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]0.1631
Customs Code8536509035
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
- Ip Degree Of Protection
- IP66 IEC 60529, IP67 IEC 60529, IP69 IEC 60529IP69K ISO 20653Type 13 UL 50 E, Type 12 UL 50 E, Type 4 UL 50 E, Type 4X UL 50 E
- Recycled Metal Content At Cr Level
- 17 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1808008EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1808008_V2-EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C, -40-70 °C, -40-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint3.8757625766
Environmental DisclosureENVPEP1808008_V2-EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- illuminated push-button
Range Of ProductHarmony XB4
ETIM
- ETIM 8
- EC001028
ETIM 9EC001028
Surge Protection And Filtering Attributes
- Surge Withstand
- 1 kV IEC 61000-4-5
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- complete product
