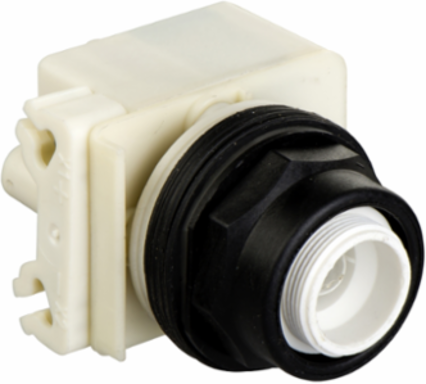

Schneider Electric 9001SK2L1 Illuminated Push-Button Head, 30mm, Spring Return, IP64, 110-120V
Schneider Electric 9001SK2L1 Illuminated Push-Button Head, 30mm, Spring Return, IP64, 110-120V
- MPN: 9001SK2L1
- UPC: 785901793892
- PPN: SCH-9001SK2L1
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$184.48/ EA
Description
This product is part of the Harmony 9001K range, an offer of Ø 30mm metal pushbuttons, switches and pilot lights." "This pushbutton operator has an octagonal shaped head without cap." "It operates with momentary mechanism." "It is fitted with incandescent light. The light block is rated to 110/120V AC supply voltage." "It is an IP64 and NEMA 1/2/3/3R/4/6/12/13 rated product." "This SK Plus options type pushbutton operator is fitted with black plastic bezel." "It is ideal for petrochemical, metallurgy, mining, oil and gas applications. It is also suitable for automotive, water and wastewater treatment applications." "This product is certified by CE, CSA LR25490 class 3211 03 and UL listed file E42259 CCN NKCR." "It is installed into a Ø 30mm panel cutout." "The modular range of Ø 30mm plastic control and signaling provides robust and reliable solutions for a wide range of heavy industry applications."
Specifications
Complementary
- Product Certifications
- CE || CSA LR24590 class 3211 03 || UL listed file E42259 CCN NKCR
- Contacts Type And Composition
- without contact block
- Bezel Material
- plastic
- Light Source
- incandescent bulb
- Mounting Diameter
- 30 mm
- Operator Profile
- projecting
- Shape Of Signaling Unit Head
- octagonal
- Size
- 30 mm
- Ip Degree Of Protection
- IP64
[Us] Rated Supply Voltage110...120 V
Operator Additional Informationwithout guard
Nema Degree Of ProtectionNEMA 1/2/3/3R/4/4X/6/12/13
Light Block Supplyvia transformer 120 V AC 50/60 Hz || via transformer 110 V AC 50/60 Hz
Light Block Supplyvia integral transformer
Type Of Operatorspring return
Cap/Operator Or Lens Colourwithout cap
Supply Frequency50...60 Hz
Bulb BaseBA 9s
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121005EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Specifications
- Range Of Product
- Harmony 9001SK
- Device Short Name
- 9001SK
Product Or Component Typehead for illuminated push-button
