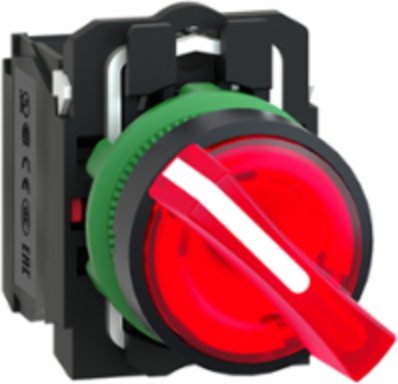

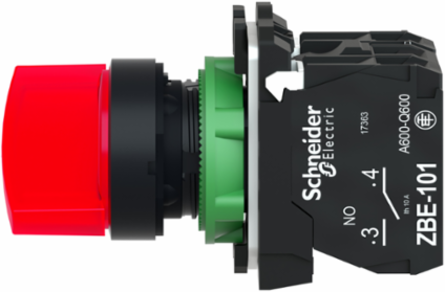

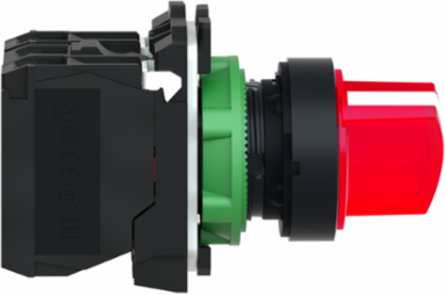

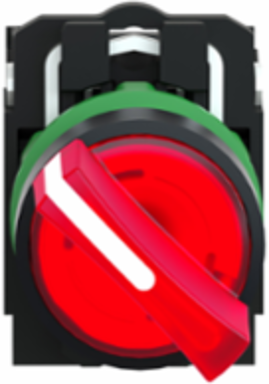

Schneider Electric XB5AK124M5 Harmony XB5 Illuminated Selector Switch 22mm 1NO + 1NC 230V-240V AC
Schneider Electric XB5AK124M5 Harmony XB5 Illuminated Selector Switch 22mm 1NO + 1NC 230V-240V AC
- MPN: XB5AK124M5
- PPN: SCH-XB5AK124M5
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$153.08/ EA
Description
This Harmony XB5, illuminated modular red selector switch has 2 positions, operates with a stay-put mechanism, a 230V to 240V AC integral LED and uses screw clamp terminals. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Specifications
Environment
- Product Certifications
- CSA || BV || UL || GL || LROS (Lloyds register of shipping) || DNV
- Ambient Air Temperature For Operation
- -40-70 °C
- Standards
- IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-4 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-70 °C
- Resistance To Electrostatic Discharge
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Protective Treatment
- TH
- Electromagnetic Emission
- class B IEC 55011
Ik Degree Of ProtectionIK04 conforming to IEC 50102
Resistance To Electromagnetic Fields10 V/m IEC 61000-4-3
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ip Degree Of ProtectionIP66 IEC 60529 || IP67 IEC 60529 || IP69 || IP69K
Nema Degree Of ProtectionNEMA 13 || NEMA 4X
Electrical Shock Protection Classclass II IEC 60536
Resistance To Fast Transients2 kV IEC 61000-4-4
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1710010EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1710010EN
Important Information
- Important Message
- A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Complementary
- Contacts Usage
- standard contacts

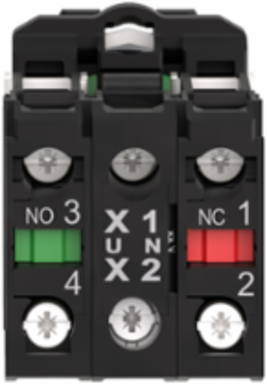

- Terminals Description Iso N°1
- (11-12)NC || (13-14)NO
- Contacts Material
- silver alloy (Ag/Ni)
- Positive Opening
- with IEC 60947-5-1 appendix K
- Net Weight
- 0.516 kg
- Current Consumption
- 14 mA
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Service Life
- 100000 h at rated voltage and 25 °C
- [Ui] Rated Insulation Voltage
- 600 V 3)IEC 60947-1
- Operating Torque
- 0.14 N.m NO changing electrical state
- Supply Voltage Limits
- 195-264 V AC
- Electrical Reliability
- λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
- Depth
- 70 mm
- Shape Of Screw Head
- cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Height42 mm
Short-Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Light Sourceuniversal LED
[Ith] Conventional Free Air Thermal Current10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-1
Device Presentationcomplete product
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Surge Withstand1 kV IEC 61000-4-5
Signalling Typesteady
[Ie] Rated Operational Current3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Mechanical Durability1000000 cycles
Width30 mm
Tightening Torque0.8-1.2 N.m IEC 60947-1
Specifications
- Range Of Product
- Harmony XB5
- Type Of Operator
- stay put
- Shape Of Signaling Unit Head
- round
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity
- 1
- Contact Operation
- slow-break
- Operator Position Information
- 2 positions 90°
- [Us] Rated Supply Voltage
- 230...240 V AC 50/60 Hz
Mounting Diameter22 mm
Product Or Component Typeilluminated selector switch
Head Typestandard
Contacts Type And Composition1 NO + 1 NC
Bezel Materialdark grey plastic
Operator Profilered standard handle
Device Short NameXB5
Bulb Baseintegral LED
