Schneider Electric XB5AK123G5 Harmony XB5 Illuminated Selector Switch 22mm 1NO+1NC 110-120V AC

  • MPN: XB5AK123G5
  • PPN: SCH-XB5AK123G5

CAD

$153.08

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

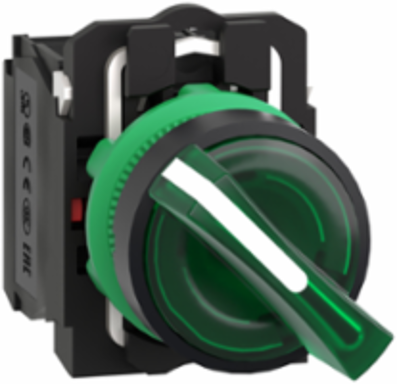

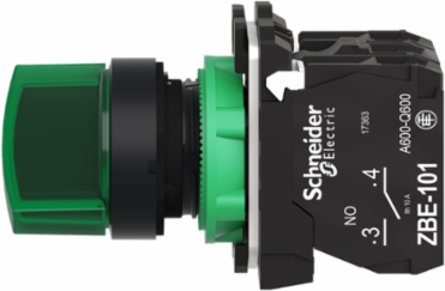

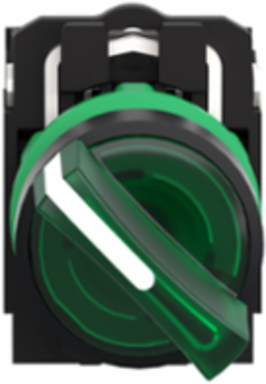

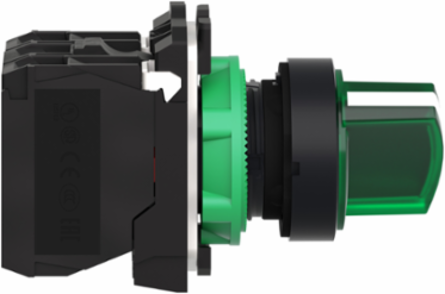

This Harmony XB5, illuminated modular green selector switch has 2 positions, operates with a stay-put mechanism, a 110V to 120V AC universal LED and uses screw clamp terminals. This illuminated selector switch provides a versatile and highly visible interface for controlling your machines. It is easily installed into standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
France
Depth70 mm

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Customizable
no, 1
Electrical Reliability
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4, λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Shape Of Screw Head
cross Philips no 1, cross pozidriv No 1, slotted flat Ø 4 mm, slotted flat Ø 5.5 mm
Operator Pos Information
2 positions 90°
[Ie] Rated Operational Current
3 A 240 V, AC-15, A600 IEC 60947-5-1, 6 A 120 V, AC-15, A600 IEC 60947-5-1, 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1, 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Connections - Terminals
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1, screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Carbon Footprint Of The Distribution Phase [A4]
0.0081074777, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0 kg CO2 eq., 0.0160141177
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
64 kg CO2 eq., 63.8234134456
Local Publishable Date
2026-01-12
Stocking Flag
Y
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI2308010EN
Reach Full Compliance Status
Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive
Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status
Compliant By Exemption
Rohs Eur Full Compliance Status
Compliant By Exemption
China Rohs Label
5
Without Single Use Plastic
No
Tier Id
2
Function Option Id
STANDARD
Product Kit Identifier
N
Bulb Base
integral LED
Contact Operation
slow-break
Contacts Type And Composition
1 NO + 1 NC
Current Consumption
14 mA
Electrical Shock Protection Class
class II conforming to IEC 60536
Head Type
standard
Light Source
universal LED
Mounting Diameter
22.5 mm
Operator Position Information
2 positions 90°
Positive Opening
with IEC 60947-5-1 appendix K
Product Or Component Type
illuminated selector switch
Protective Treatment
TH
Resistance To Electromagnetic Fields
10 V/m IEC 61000-4-3
Resistance To High Pressure Washer
7000000 Pa 55 °C 0.1 m
Sale Per Indivisible Quantity
1
Shape Of Signaling Unit Head
round
Software Version
v5.9.4
Sustainable Packaging
No
Total Lifecycle Carbon Footprint
64 kg CO2 eq.
Vibration Resistance
5 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Operator Profile 1 Cap Operator Or Lens Color
green
Pep Code
ENVPEP2308010EN
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime, In Y
10
Energy Model - Installation [A5]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Energy Model - End Of Life [C1-c4]
Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Height Nominal
42 mm
[Ith] Conventional Free Air Thermal Current
10 A IEC 60947-5-1
[Uimp] Rated Impulse Withstand Voltage
6 kV IEC 60947-1
Short-circuit Protection
10 A cartridge fuse gG IEC 60947-5-1
Package Weight(Lbs)
62 g
Take-back
No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Durability1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.2 A 110 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C, 1000000 cycles, DC-13, 0.5 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C
Resistance To Electrostatic Discharge6 kV on contact (on metal parts) IEC 61000-4-2, 8 kV in free air (in insulating parts) IEC 61000-4-2
Shock Resistance30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Certificate AgencyBV, UL, CSA, DNV, LROS (Lloyds register of shipping)
[Us] Rated Supply Voltage110...120 V, 110...120 V AC 50/60 Hz

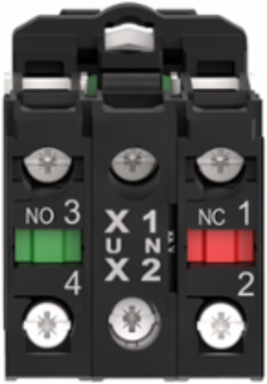

Terminals Description Iso N°1(11-12)NC, (13-14)NO, (11-12)NC, (13-14)NO
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1291594527, 0.1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.5 kg CO2 eq., 0.4714012225
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Product Repair Index Dam DocXB4BS8442-ENVREPAIR-A-EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Bezel Materialdark grey plastic
Compatibility CodeXB5
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Device Short NameXB5
Electromagnetic Emissionclass B IEC 55011
Important MessageA change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Mechanical Durability1000000 cycles
Operating Torque0.14 N.m NO changing electrical state
Operator Profilegreen standard handle
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Repair IndexA
Range Of ProductHarmony XB5
Resistance To Fast Transients2 kV IEC 61000-4-4
ReturnabilityNo
Service Life100000 h at rated voltage and 25 °C
Signalling Typesteady
Supply Voltage Limits100-132 V AC
Tightening Torque0.8-1.2 N.m IEC 60947-1
Type Of Operatorstay put
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Supply Voltage 20 Supply Voltage110...120 V
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThis illuminated modular selector switch has 2 positions, operates with a stay-put mechanism, a 24V AC universal LED. .This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.436 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1,UL 508.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27 / Electricity Mix; Production mix; Low voltage; APAC / Electricity Mix; Production mix; Low voltage; US / Electricity Mix; Production mix; Low voltage; BR
Recyclability Potential, In %33
Width Nominal30 mm
[Ui] Rated Insulation Voltage600 V 3)IEC 60947-1
Cap/Operator Or Lens Colourgreen
Nbr. Of Units In Pkg.1
Product Repair Index - Dam Document IdXB4BS8442-ENVREPAIR-A-EN
Warranty (In Months)18

Environment Attributes Main

Ambient Air Temperature For Operation
-40-70 °C, -40-70 °C
Ip Degree Of Protection
IP66 IEC 60529, IP67 IEC 60529, IP69, IP69K
Take Back
No
China Rohs Regulation
X
Carbon Footprint
64.4480957163
Environmental Disclosure
ENVPEP2308010EN
Packaging Made With Recycled Cardboard
No
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Nema Degree Of ProtectionNEMA 13, NEMA 4X, UL type 4X/13
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2308010EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2308010EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type
illuminated selector switch
Range Of ProductHarmony XB5

ETIM

ETIM 8
EC001029
ETIM 9EC001029

Surge Protection And Filtering Attributes

Surge Withstand
1 kV IEC 61000-4-5

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months

Overview Attributes

Device Presentation
complete product
