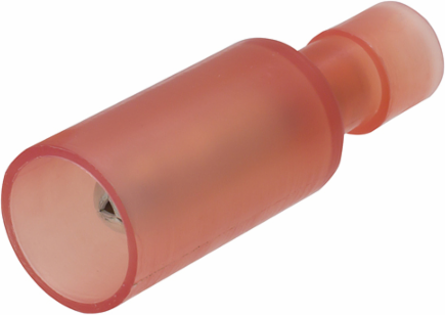

ILSCO NFIDT-18-156-P25 ILSCON Bullet Disconnect Terminal, Conductor Range 18-22, Female, Nylon Fully Insulated, Red Color Code, Pack of 25
- MPN: NFIDT-18-156-P25
- UPC: 783669207187
- PPN: ILC-NFIDT-18-156-P25
CAD
$24.33
/ EA
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Documentation & Downloads
Specifications
Voltage
| Voltage Rating | 600 V |
|---|
Dimensions
| Maximum Wire Insulation Diameter (IN) | 0.252 |
|---|
Testing Standards
| Prop65 Compliance | WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
|---|---|
| UL File Number | E474615 |
| UL / CULUS Specification | UL/cUL 1977 Recognized |
|---|
Additional Class Attributes
| Conductor Entry | Funnel wire |
|---|---|
| Construction Type | Butted |
| ILSCOs Die Index Number | C |
| Installing Dies | Die Set C |
| Insulation Grip | Yes |
| Tongue Type | Bullet Disconnect |
| Connection | Compression |
|---|---|
| End Connection | Female |
| Installation Tooling | ILST-22K |
| Insulation Flared End | Yes |
| Number of Conductors | 1 |
Material and Finish
| Conductor Material | Copper |
|---|---|
| Fully Insulated | Yes |
| Material | Brass |
| Connector Finish | Tin |
|---|---|
| Insulation | Nylon |
Conductor Ranges
| Conductor Range CU Solid (Primary, run, main, line) | 18 Sol - 22 Sol |
|---|
| Conductor Range CU Stranded (Primary, run, main, line) | 18 Str - 22 Str |
|---|
General
| Bag Quantity | 25 |
|---|---|
| Dual Rated | No |
| UPC Code | 78366920718 |
| Carton Quantity Description | STD PACK QTY 10 |
|---|---|
| NEMA Code | 0-000-1 |
Color
| Color | Silver, Red |
|---|
| Color Code | Red |
|---|
Environment and Temperature
| Halogen Free | Yes |
|---|
| Temperature Rating | 85°C |
|---|
