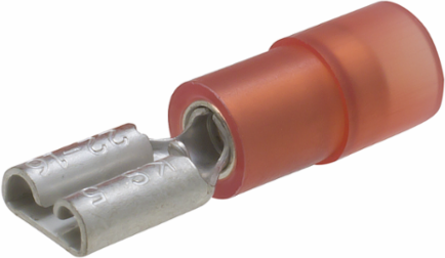

Ilsco VDFT-18-187-P50 ILSCON Disconnect Terminal, Conductor Range 18-22, Female, Vinyl Insulated, Red Color Code, 0.187 x .020in Tab Size, Pack of 50
Ilsco VDFT-18-187-P50 ILSCON Disconnect Terminal, Conductor Range 18-22, Female, Vinyl Insulated, Red Color Code, 0.187 x .020in Tab Size, Pack of 50
- MPN: VDFT-18-187-P50
- UPC: 0783669214024
- PPN: ILC-VDFT-18-187-P50
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$21.15/ EA
Specifications
Voltage
- Voltage Rating
- 300 V
Dimensions
- Height BX (IN)
- 7.75
- Weight BX (LB)
- 9.3878
Maximum Wire Insulation Diameter (IN)0.157
Width BX (IN)9.5
Testing Standards
- Prop65 Compliance
- WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov
- UL / CULUS Specification
- UL/cUL 310 Listed
UL Control Number19X5
UL File NumberE474613
Additional Class Attributes
- Conductor Entry
- Funnel wire
- Construction Type
- Butted
- ILSCOs Die Index Number
- C
- Installing Dies
- Die Set C
- Insulation Grip
- Yes
- Tongue Type
- Disconnect
ConnectionCompression
End ConnectionFemale
Installation ToolingILST-22K
Insulation Flared EndYes
Number of Conductors1
Material and Finish
- Conductor Material
- Copper
- Fully Insulated
- No
- Material
- Brass
Connector FinishTin
InsulationVinyl
Conductor Ranges
- Conductor Range CU Solid (Primary, run, main, line)
- 18 Sol - 22 Sol
Conductor Range CU Stranded (Primary, run, main, line)18 Str - 22 Str
General
- Bag Quantity
- 50
- Dual Rated
- No
- UPC Code
- 78366921402
Carton Quantity DescriptionSTD PACK QTY 10
NEMA CodeS-588-3
Specifications
- Height
- 2.88 in
- Weight
- 0.1565 lbs
Length3.5 in
Width1.21 in
Color
- Color
- Silver, Red
Environment and Temperature
- Halogen Free
- No
Temperature Rating75°C
