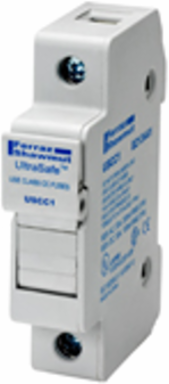

Mersen USCC1I-AC120 UltraSafe Class CC Fuseholder, 1 Pole, 30 Amp, IP20 Finger-Safe, DIN-Rail Mount
Mersen USCC1I-AC120 UltraSafe Class CC Fuseholder, 1 Pole, 30 Amp, IP20 Finger-Safe, DIN-Rail Mount
- MPN: USCC1I-AC120
- PPN: FER-USCC1I-AC120
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$88.88/ EA
Description
Mersen UltraSafe modular fuseholders introduce a new level of safety for class CC and midget fuses up to 30 amperes. UltraSafe fuseholders qualify as "finger safe" under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe fuseholders are available in 1, 2, 3 or 4 poles, with or without visual blown-fuse indicators in each pole. Multiple poles can be assembled in the field by ordering and installing pin-tie handles. UltraSafe fuseholders save up to 15% mounting space and any combination can be snapped onto 35mm DIN rail for extra savings in panel building time. Choose class CC fuses for Type "2" no-damage protection, one of the safest protection packages in the industry. The UltraSafe body material is tough and durable polyamide, with exceptional insulating properties.
Features
- IP20 Finger-Safe
- Optional visual blown fuse indication
- Quick, tool-free, easy fuse change outs
- Compact footprint
- DIN-rail mounting
Specifications
Product Details
- Connection Terminal Type
- Pressure Plate
- Number of Poles
- 1
- CE conformity
- Yes
- UL Certification
- E52283 IZLT.E52283
- Enclosure
- IP20
- Class
- Class CC
- CSA Certification
- 6225-01 032169_0_000
- Standards
- UL Listed to standard UL4248-4, File E52283 CSA Certified C22.2, Class 6225, File 32169
- Body Material
- Polyamide
- Lead Free
- Yes
AC Voltage600 VAC
ROHS CompliantYes
SCCR200kA
DC Voltage600 VDC
Ampere Range0-30 A
Materials ContactTin-plated Copper
MountingDIN-rail
Wiring Range#6 to #14 Solid or Stranded
ApplicationsAll circuits (including branch-circuits) up to 600 volts (AC or DC) for motors, control circuits, transformers, etc.
