Federal Signal LP57-024RGB-F-Q Streamline LP57 Mini Beacon Series, M12 Quick Connect, 24VDC, Flashing, RGB
- MPN: LP57-024RGB-F-Q
- UPC: 782979252313
- PPN: FDS-LP57-024RGB-F-Q
- UNSPSC: 39111706
CAD
$177.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

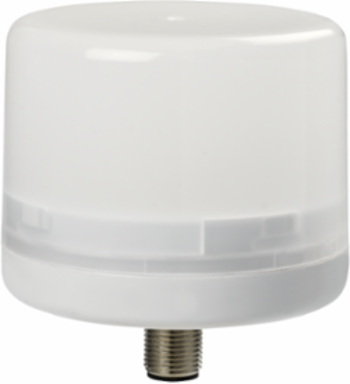

Model LP57 is available as a single-color or multicolor LED light that is ideal for applications requiring low-profile signaling. Single-color models are steady burn and available in five colors. Multicolor models feature a single flash pattern and offer seven color options in one device.All LP57 models have clear, opaque lenses for signaling in close proximities. The LP57 enclosure is rated Type 4X and offers a self-extinguishing polycarbonate housing that protects against vibrations, dust, and atmospheric elements. Each model features either an M12 Cable Gland with 12-inch (300 mm) leads or M12 4-Pin Quick Connect
Features
- Available in 24 Vdc
- Choice of M12 Cable Gland or M12 Quick Connect
- 100,000-hour LED
- Single color models are steady burn and available in five colors (Amber, Blue, Green, Red, and White)
- Multicolor models feature a single flash pattern and offer seven color options in one device (Amber, Blue, Cyan, Green, Magenta, Red, and White)
- Self-extinguishing polycarbonate housing
- Type 4X, IP66 enclosure
- IP69K compliant
- CE and UKCA compliant
- UL and cUL Listed
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Height | 2.2 in |
| Body Color | White |
| Availability | Available in 4-6 Weeks |
| Lens Style | Opaque |
| Operating Temp. | -22˚ to +122˚F (-30˚ to +50˚C) |
| Visual Signals Connection | Quick Connect |
| Environmental Rating | Ordinary Location |
| Lead Time | Available in 4-6 Weeks |
| Length | 2.76 in |
|---|---|
| Weight | 0.31 lbs |
| Flashes Per Minute | 120 (+/- 10) |
| Lens Color | Multicolor |
| Operating Current Amps | 0.08 |
| Operating Voltage | 24 Vdc |
| Visual Signals Lens Color | Multicolor |
| Enclosure Rating | IP66, Type 4X |
| Product Life Cycle Status | Completed |
