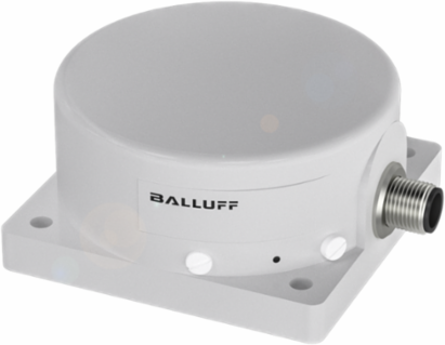

Balluff BAW Q80KA-UAC50F-S4-504 Inductive Distance Sensor 0-50 mm Range, IP67, Block Style
- MPN: BAW Q80KA-UAC50F-S4-504
- PPN: BAL-BAW005J
CAD
$1187.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Balluff BAW Q80KA-UAC50F-S4-504 Inductive Distance Sensor is engineered for precision and reliability in demanding environments. With a sensing range of 0 to 50 mm and a robust IP67 rating, this sensor is designed to withstand harsh conditions while providing exceptional repeat accuracy of ±12 µm. Its non-flush installation and block style design make it versatile for various applications, while the analog output delivers a voltage range of 0 to 10 V for seamless integration into existing systems. Crafted from durable PBT material, this sensor operates efficiently across a wide temperature range of -10 to 70 °C, ensuring consistent performance wherever it's deployed.
Documentation & Downloads
Specifications
Additional
- Operating Voltage
- 20-30 VDC
- Repeat Accuracy
- ±12 µm
- Limit Frequency -3 dB
- 15 Hz
- Installation
- Non-flush
- Size / Dimensions
- 80 x 40 x 80 mm
- Material Sensing Surface
- PBT
- Ingress Rating
- IP67
- Operating Temperature Range
- -10 to 70 °C
- Country of Origin
- Germany
Sensing Range0-50 mm
Output Voltage0-10 V
Non-linearity Max.±750 µm [15-35 mm], ±1500 µm [5-15 mm, 35-45 mm], ±2000 µm [0-5 mm, 45-50 mm]
ConnectionConnector, M12x1-Male, 3-pin
MaterialPBT
Housing MaterialPBT
Output CharacteristicFalling on approach
DesignBlock Style
Approval/ConformityCE, WEEE
