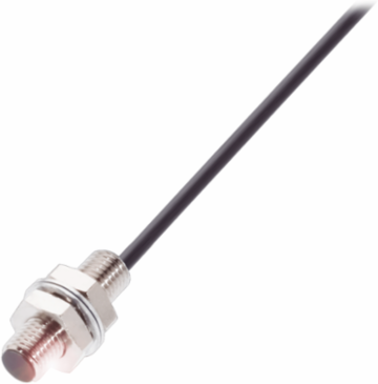

Balluff BES 516-324-G-E4-C-PU-02 Inductive standard sensors with preferred types BES 516-324-G-E4-C-PU-02

  • MPN: BES 516-324-G-E4-C-PU-02
  • PPN: BAL-BES00NY

CAD

$121.92

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.

Documentation & Downloads

Specifications

Additional

Operating Voltage10-30 VDC
Switching OutputPNP Normally open (NO)
InstallationFlush mounting
Dimension8 x 30 mm
Ambient Temperature Range-40-85 C
Material Sensing SurfacePBT
IP RatingIP68
Switching Frequency5000 Hz
Rated Operating Distance2 mm
SizeM8x1
ConnectionCable, 2.00 m, PUR
Housing MaterialStainless steel
Material JacketPUR
Approval/ConformityCE, cULus, EAC, WEEE
Inductive standard sensors with preferred types BES 516-324-G-E4-C-PU-02
