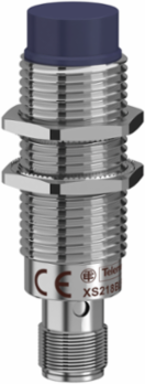

Telemecanique Sensors XS218BLPAM12 inductive sensor XS2 M18, L64mm, brass, Sn8mm, 12..24VDC, M12
- MPN: XS218BLPAM12
- PPN: TES-XS218BLPAM12
- UNSPSC: 39122230
CAD
$105.68
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, non flush mountable sensor. Diameter 18mm, threaded M18 x 1. It features a metal cylindrical boby and a M12 connector. It has a sensing distance of 8mm. Three-wire, DC supply, 12V to 24V, NO function, PNP solid-state output.
Documentation & Downloads
Specifications
Key Specifications
- Electrical Connection
- male connector M12, 4 pins
- Discrete Output Type
- PNP
- Type Of Output Signal
- discrete
- Sensor Name
- XS2
- Wiring Technique
- 3-wire
- Series Name
- general purpose
- [Sn] Nominal Sensing Distance
- 8 mm
- Switching Capacity In Ma
- <= 200 mA overload and short-circuit protection
- Enclosure Material
- nickel plated brass
[Us] Rated Supply Voltage12...24 V DC reverse polarity protection
Discrete Output Function1 NO
Range Of ProductTelemecanique Inductive proximity sensors XS
Size64 mm
Ip Degree Of ProtectionIP67 IEC 60529
Body Typefixed
Sensor Typeinductive proximity sensor
Sensor Designcylindrical M18
Complementary
- Iso Thread
- M18 x 1
- Maximum Delay Response
- 0.1 ms
- Operating Zone
- 0-6.4 mm
- Threaded Length
- 35 mm
- Length
- 64 mm
- Net Weight
- 0.035 kg
- Differential Travel
- 1...15% of Sr
- Maximum Delay First Up
- 15 ms
- Detector Flush Mounting Acceptance
- non flush mountable
- Front Material
- PBT
Current Consumption<= 10 mA no-load
Status Ledoutput state 1 LED yellow)
Maximum Voltage Drop<2 V closed)
MarkingCE
Materialmetal
Switching Frequency<= 500 Hz
Maximum Delay Recovery1 ms
Supply Voltage Limits10-36 V DC
Detection Facefrontal
Output Circuit TypeDC
Environment
- Product Certifications
- CSA || UL
- Vibration Resistance
- 25 gn +/- 2 mm 10-55 Hz)IEC 60068-2-6
- Ambient Air Temperature For Storage
- -40-85 °C
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP111006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Circularity ProfileENVEOLI1110045
