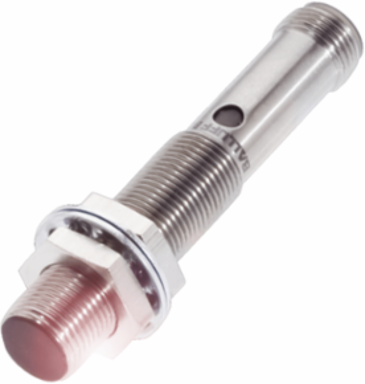

Balluff BES 515-207-S21-E Inductive standard sensors with preferred types BES 515-207-S21-E
Balluff BES 515-207-S21-E Inductive standard sensors with preferred types BES 515-207-S21-E
- MPN: BES 515-207-S21-E
- PPN: BAL-BES02E3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$153.70/ EA
Description
Our standard inductive sensors are ideal for object detection in metal areas. They are short-circuit protected and operate without contact, making them wear-free and very resistant to dirt and contamination. The sensors are available in configurations from 3 mm Ø to 80 × 80 mm square dimensions. The rugged and reliable inductive Global Sensors provide especially economical solutions. We can also delivery the broad range of these over 500 preferred types worldwide in the shortest possible time.
Specifications
Specifications
- Dimension
- Ø 12 x 70 mm
- Installation
- for flush mounting
- Switching output
- Normally open (NO)
- Housing material
- Stainless steel
- Connection
- Connector, 1/2"-20 UNF-2A-Male
- Ambient temperature
- -25-70 °C
- Approval/Conformity
- CE, cULus, EAC, WEEE
StyleM12x1
Range2 mm
Switching frequency1000 Hz
Material sensing surfacePA 12
Operating voltage Ub20-250 VDC/20-250 VAC
IP ratingIP67
