Balluff

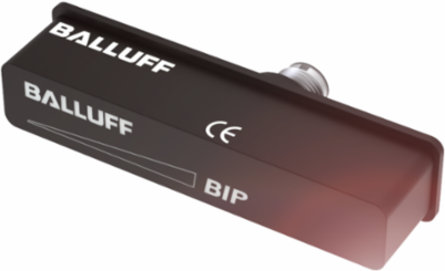

Balluff BIP ED2-B070-03-S4 Inductive positioning systems - BIP000N

Inductive positioning systems - BIP000N
  • MPN: BIP ED2-B070-03-S4
  • PPN: BAL-BIP000N

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$501.97/ EA

Description

Inductive positioning systems - BIP000N

Specifications

Specifications

Country of Origin
Hungary
Style
block style
Housing material
PBT
Analog output
Analog, voltage 0...10 V; Analog, current 4...20 mA
Repeat accuracy
±80 µm
Operating voltage Ub
16...30 VDC
IP rating per IEC 60529
IP67
Dimension92.5 x 21 x 22 mm
ConnectionConnector, M12x1-Male, 4-pin
Measuring range0...70 mm
Output characteristicAdjustable
Non-linearity max.±300 µm
Ambient temperature-25...85 °C
Approval/ConformityCE; UKCA; cURus; WEEE
