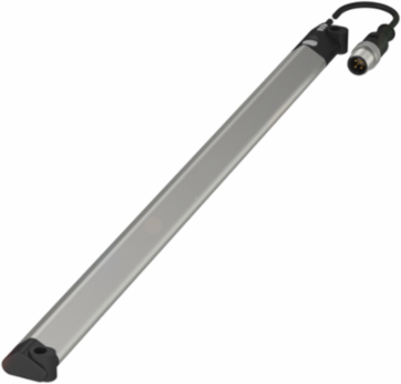

Balluff BMP 01-EL1PP21A-0256-00-P00,5-S4 Magnetic Field Positioning System 17.5 x 9.6 x 266 mm, IO-Link 1.1, 256 mm Range
- MPN: BMP 01-EL1PP21A-0256-00-P00,5-S4
- PPN: BAL-BMP000W
CAD
$648.13
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Field Positioning System 17.5 x 9.6 x 266 mm, IO-Link 1.1, 256 mm Range
Documentation & Downloads
Specifications
Additional
| Measuring Range | 256 mm |
|---|---|
| Repeat Accuracy | 100 m |
| Operating Voltage | 15...30 VDC |
| Interface | IO-Link 1.1 |
| Connection | Cable with connector, M12x1 Male, 4-pin, 0.5 m, PUR |
| Ambient Temperature | -25...85 C |
| Approvals | CE; UKCA; cULus; IO-Link; WEEE |
| Resolution | 1 m (IO-Link), 12 Bit (analog) |
|---|---|
| Non-linearity Typ. | 250 m |
| Analog Output | Analog voltage/current selectable 0 10 V/4 20 mA |
| Dimensions | 17.5 x 9.6 x 266 mm |
| Housing Material | PA 12; Aluminum |
| IP Rating | IP67 |
| Country of Origin | China |
