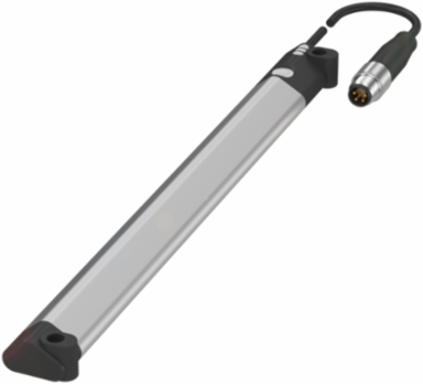

Balluff BMP 01-EL1PP21A-0160-00-P00,5-S75 Magnetic Field Positioning System, 160 mm Range, IO-Link 1.1
- MPN: BMP 01-EL1PP21A-0160-00-P00,5-S75
- PPN: BAL-BMP000A
CAD
$510.64
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Magnetic Field Positioning System, 160 mm Range, IO-Link 1.1
Documentation & Downloads
Specifications
Additional
| Measuring Range | 160 mm |
|---|---|
| Resolution | 1 µm (IO-Link), 12 Bit (analog) |
| Analog Output | Voltage/current selectable 0-10 V/4-20 mA |
| Interface | IO-Link 1.1 |
| Dimension | 17.5 x 9.6 x 170 mm |
| Housing Material | PA 12; Aluminum |
| Approval/Conformity | CE; UKCA; cULus; IO-Link; WEEE |
| Repeat Accuracy | ±100 µm |
|---|---|
| Non-linearity | ±250 µm |
| Operating Voltage | 15-30 VDC |
| IP Rating | IP67 |
| Connection | Cable with connector, M8x1-Male, 4-pin, 0.5 m, PUR |
| Ambient Temperature | -25 to 85 °C |
| Country of Origin | China |
