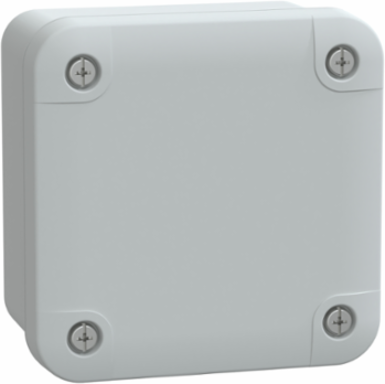

Schneider Electric NSYTBS885 ABS Industrial Box IP66 89x54x89mm, Low Plain Cover, IK07
Schneider Electric NSYTBS885 ABS Industrial Box IP66 89x54x89mm, Low Plain Cover, IK07
- MPN: NSYTBS885
- PPN: SCH-NSYTBS885
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$4.05/ EA
Description

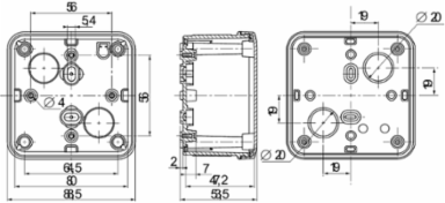

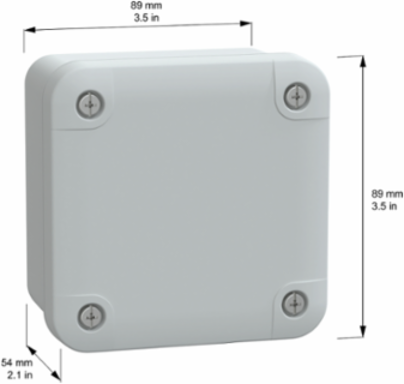

Thalassa TBS industrial ABS box with opaque cover H10. Int is 80 x 80 x 65 mm. Ext is 89 x 89 x 51 mm. Wall mounted enclosure. Low plain cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4X), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40°C)/(-25 to 60°C).
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
- Internal Height
- 80 mm
Internal Depth47 mm
Internal Width80 mm
Conformance Attributes
- Product Certifications
- TÜV
StandardsIEC 62208
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition

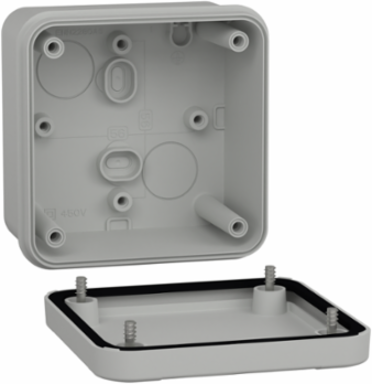

- 1 body, 1 cover, 4 cover screw
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.18726480642955026
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.3 kg CO2 eq., 0.3443294730970169
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Legacy Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1904
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Average Percentage Of Recycled Plastic Content
- 45 %
- Cover Fixing
- metal screws
- Electrical Insulation Class
- class II
- Energy Efficiency Optimized
- False
- Lock Type
- captive screw flat outside sealed area
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 5
- Removable Parts
- cover by captive screws
- Software Version
- v6.1
- Total Lifecycle Carbon Footprint
- 0.7 kg CO2 eq.
- Warranty In Months
- 18
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
- Functional Unit Unit
- Unit
- Reference Lifetime In Y2
- 20
- Energy Model Installation A5 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Offer Owner Code
- 190789
- Width Nominal
- 89 mm
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.1866203322596602, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.021978171086895953, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Local Publishable Date2025-07-10
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Body Typeone piece moulded
Device Applicationmulti-purpose
Enclosure Mountingwall mounted
Fire Resistance650 °C IEC 60695-2-11
MaterialABS with 45% of post-industrial recycled content
Product Or Component Typeindustrial box
RangePanelSeT
ReturnabilityNo
Sustainable PackagingNo
Type Of Front Coverlow plain cover
Pep CodeENVPEP2312020EN
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional Unit Quantity1
Product Weight In G294
Energy Model Manufacturing A1 A3 2Hungary, HU
Energy Model Use B6 2Electricity Mix; Low voltage; 2018; Europe, EU-27
Recyclability Potential In 21
Height Nominal89 mm
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.7401927828731233
- Ambient Air Temperature For Storage
- -15-40 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2312020EN
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNej
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-60 °C
Environmental DisclosureENVPEP2312020EN
Ip Degree Of ProtectionIP66 conforming to NEMA 4.4X
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2024-07-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- industrial box
ETIM
- ETIM 8
- EC000058
ETIM 9EC000058
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Hungary
Depth54 mm
