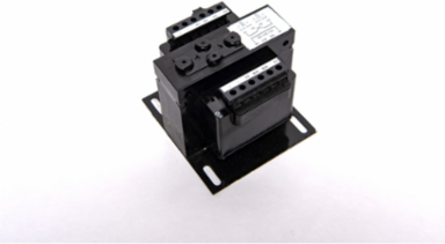

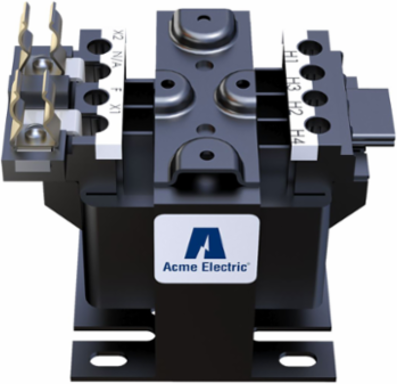

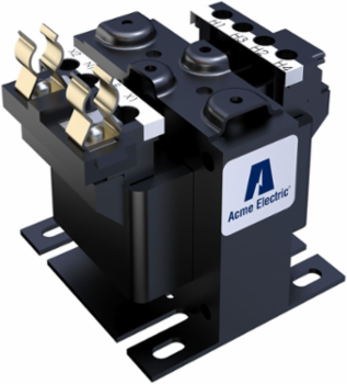

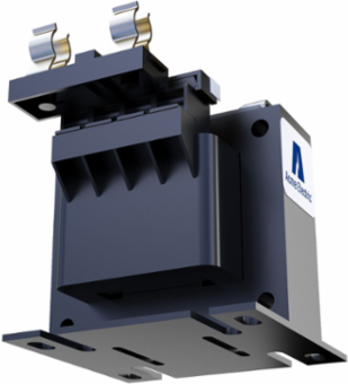

Acme Electric CE750N004 Industrial Control Transformer 200-480V Primary, 110-120V Secondary
- MPN: CE750N004
- UPC: 047503013762
- PPN: HBL-CE750N004
- UNSPSC: 39121026
CAD
$1514.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Industrial Control Transformer 200,208/220,230,240/440,460,480 Primary Volts -23,24,25/110,115,120 Secondary Volts
Features
- Encapsulated design protects core & coil assembly from potentially damaging contaminants
- Constructed with high quality silicon steel lamination to minimize core losses and increase efficiency
- Integrally molded terminal blocks with isolation barriers to prevent arc over
- Fuse blocks kits available and easily adaptable
- Series-parallel connecting links save wiring and labor costs
- Terminal blocks allow full access for ring terminals for easy installation even with solid strand conductors
- Copper windings on all groups
- Heavy gauge steel mounting plate adapts to various mounting dimensions
- Voltage regulation exceeds NEMA requirements
- UL, and cUL Listed
- Meets or exceeds UL, CSA, NEMA, ANSI and OSHA Standards
- Twenty year limited warranty
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Secondary Voltage | 23,24,25/110,115,120 V |
| Frequency Rating | 50/60 Hz |
| Standard | UL Listed;cUL Listed |
| Freight Class Code | 06342001 |
| Image Actual Or Representative | A |
| Construction | Encapsulated |
| BOX SIZE | 10.000x13.000x10.000 (in) |
| Pallet Height | 25.000 in |
| Pallet Weight | 256.000 lb. |
| NAICS Code | 335311 |
| Width | 10.000 in |
|---|---|
| Application | Acme’s TB Series Industrial Control Transformers are especially designed to accommodate the momentary current inrush caused when electromagnetic components are energized... without sacrificing secondary voltage stability beyond practical limits.The transformer’s windings and internal terminations are encapsulant encased in a durable thermoplastic end cap, protecting them from potentially damaging moisture, dirt and other ambient contaminants. Acme’s TB Series transformers are dry-type, step-down transformers with the secondary control circuit isolated from the primary line circuit to assure maximum safety. |
| Primary Voltage | 200, 208/220, 230, 240/440, 460, 480 V |
| Class Code | D10 |
| Harmonization Code | 8504314065 |
| Sub Class Code | D10D150 |
| Base Unit of Measure | EA |
| Carton - SCC-14 Next Lower Level Sub Pack | 00047503013762 |
| Pallet Length | 36.000 in |
| Pallet Width | 30.000 in |
Certifications
| Certified Listed | UL Listed;cUL Listed |
|---|
