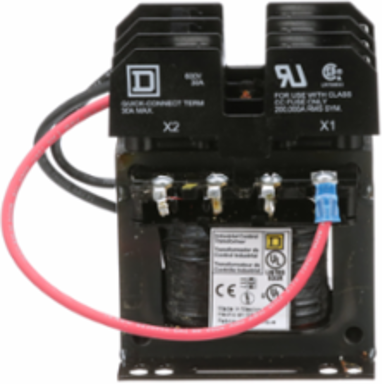

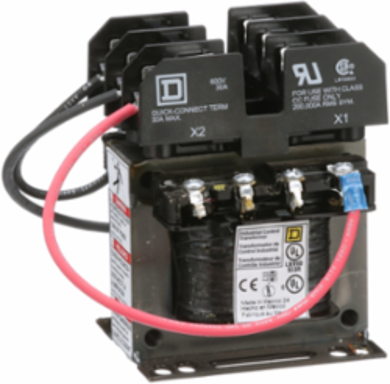

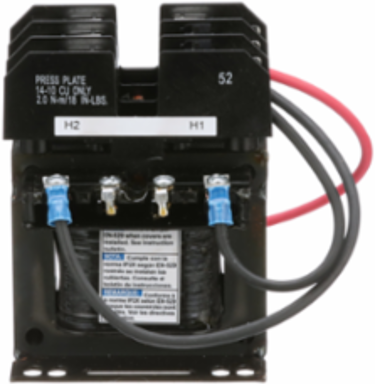

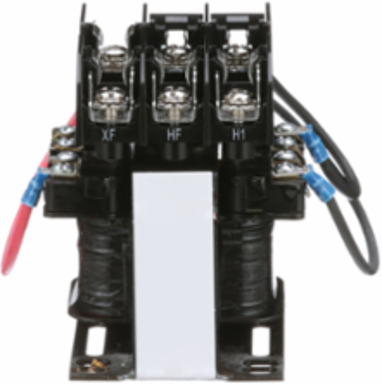

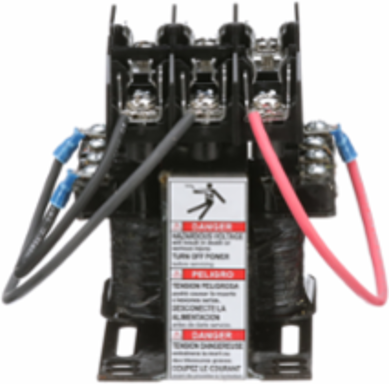

Square D 9070TF50D5 Type TF Industrial Control Transformer 50VA 600V Primary 120V Secondary
- MPN: 9070TF50D5
- UPC: 785901845676
- PPN: SCH-9070TF50D5
CAD
$123.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Square D™ by Schneider Electric Type TF Industrial Control Transformers provide factory installed overcurrent protection fuse blocks (two primary and one secondary). The stacked fuse blocks maintain Type T's small footprint and features while providing overcurrent protection. These transformers use low impedance windings to handle higher inrush current and still regulate voltage. This Type TF is a single phase 50VA transformer designed for 600VAC primary with a 120VAC secondary. (The unit also supports 575VAC to 115VAC and 550VAC to 110VAC.) It is compliant with UL and CSA standards verified by third party UL carrying the cUL and UL labels.
Features
- Yes, this Type TF transformer features factory-installed, top-mounted fuse blocks containing two primary fuse blocks and one secondary fuse block. By stacking the fuse blocks directly on top of the unit, it maintains the ultra-compact footprint of standard Type T models while eliminating the need for separate, bulky field-installed fuse blocks—saving you valuable real estate inside dense control enclosures.
- Engineered for flexibility, this single-phase transformer primarily converts a 600VAC input down to a clean 120VAC secondary output, but it is fully rated to handle 575V to 115V and 550V to 110V systems.
- Built with low-impedance copper windings, the 50 VA power-rated unit is specifically optimized to manage the high momentary inrush currents characteristic of electromagnetic loads. This high-capacity regulation ensures that control components pull in cleanly without experiencing intermittent dropouts or control-circuit failure during startup cycles.
- Designed as a direct drop-in replacement, this open-style industrial control transformer features standard panel-mount slots that align with the legacy Type T layout.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- TF
Product Or Component TypeIndustrial Control Transformer
Complementary
- Height
- 4 in
- Temperature Rise
- 55 °C
- Electrical Connection
- screw clamp terminals
- Width
- 3 in
- Product Compatibility
- FSC1
- Network Number Of Phases
- 1 phase
Fuse Type10.3 x 38 mm CC top
Materialcopper: winding
Rated Power In Va50 VA UL || 50 VA CSA || 50 VA NOM || 50 VA CE
Depth3.09 in
Primary Voltage600 V 120 V || 575 V 115 V || 550 V 110 V
Environment
- Product Certifications
- UL listed file E61239 || CSA file LR37055 guide 184-N-90
- Insulation Temperature
- 105 °C
Nema Degree Of Protectionnot rated (open device)
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
