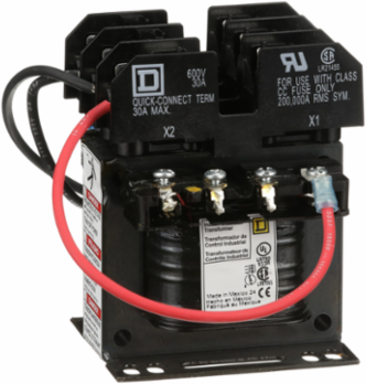

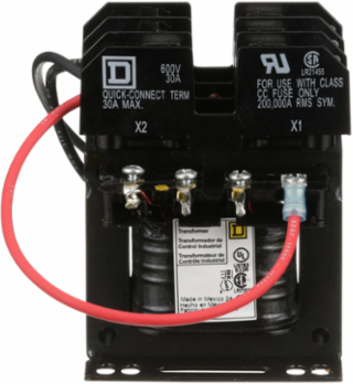

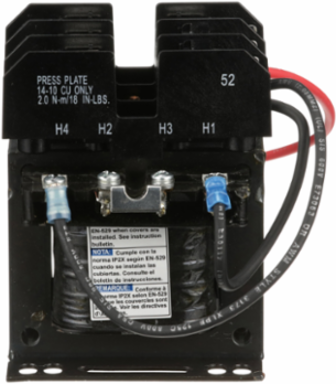

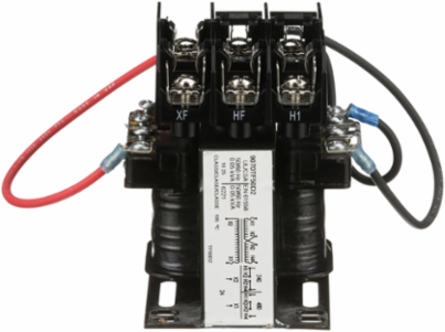

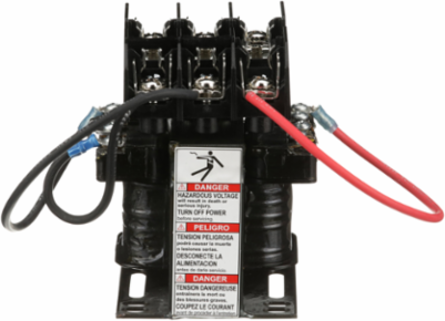

Square D 9070TF50D2 Type TF Industrial Control Transformer 50VA, 240x480V Primary, 24V Secondary, 55°C Rise
Square D 9070TF50D2 Type TF Industrial Control Transformer 50VA, 240x480V Primary, 24V Secondary, 55°C Rise
- MPN: 9070TF50D2
- UPC: 785901905189
- PPN: SCH-9070TF50D2
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$118.05/ EA
Description
Type TF are control power transformers that have factory installed fuse blocks into the top of the device with two primary and one secondary fuse block. The primary fuse block is designed for rejection-type class CC fuse and for the secondary fuse block it accept non-rejection-type, midget fuse. Type TF transformers come in the MultiTap version as well. This industrial control transformer has a power rating of 50VA and is single phase. It has a 240/480 V primary voltage and 24 V secondary voltage with a temperature rise of 55 °C. Dimensions for this product are 5.73 in (H), 5.25 in (W), 6.04 in (D). This transformer has screw clamp terminals connections and its winding is made of copper. This device is compatible with the fingersafe cover FSC1. This transformer complies to UL, CE & CSA standards.
Specifications
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1308008EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Specifications
- Range Of Product
- TF
Product Or Component TypeIndustrial Control Transformer
Complementary
- Fuse Type
- 10.3 x 38 mm CC top
- Electrical Connection
- screw clamp terminals
- Primary Voltage
- 240 x 480 V 24 V
Temperature Rise55 °C
Rated Power In Va50 VA UL || 50 VA CSA || 50 VA NOM || 50 VA CE
Network Number Of Phases1 phase
Environment
- Product Certifications
- CSA file LR37055 guide 184-N-90 || UL listed file E61239
- Insulation Temperature
- 105 °C
Nema Degree Of Protectionnot rated (open device)
