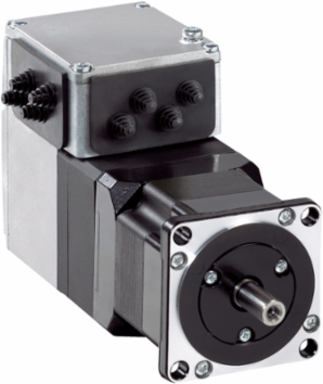

Schneider Electric ILA2K571PC1A0 Integrated Drive with Servo Motor, 24-48V, 0.44 N.m Torque, Ethernet/IP
- MPN: ILA2K571PC1A0
- PPN: SCH-ILA2K571PC1A0
CAD
$2693.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Designed for efficiency in automation and control systems, this integrated drive from Schneider Electric combines a servo motor with advanced connectivity options to enhance motion control applications. Operating at a voltage range of 24-48V and delivering a torque of 0.44 N.m, it is well-equipped to handle various precision tasks with reliability. The inclusion of Ethernet/IP capabilities allows for seamless integration into existing networks, ensuring smooth communication and control. Ideal for those looking to improve their automation processes, this device represents a significant advancement in servo drive technology, combining robust performance with innovative features.
Documentation & Downloads
Specifications
Additional
- Nominal Torque
- 0.44 N.m (3.89 lbf.in)
- Continuous Stall Torque
- 0.44 N.m
- Rated Supply Voltage
- 24 V, 48 V
- Voltage State 0 Guaranteed
- -3...4.5 V
- Current Consumption
- 5000 mA maximum continuous, 7000 mA peak
- Maximum Switching Current
- 100 mA per output, 200 mA total
- Maximum Axial Force
- 104 N (force pressure and tensile force)
- Number of Motor Poles
- 6
- Network Number Of Phases
- single phase
- Winding Type
- medium speed of rotation and medium torque
- Gear Box Type
- without
- Service Life In Hours
- 20000 h bearing
- Ambient Air Temperature for Operation
- 0-40 °C without derating, 40-55 °C with power derating
- Mounting Support
- flange

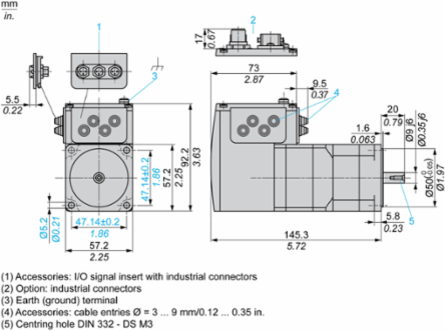

- Length
- 145.3 mm (5.72 in)
- Shaft Length
- 20 mm (0.79 in)
- Centring Collar Diameter
- 50 mm
- Mounting Holes Diameter
- 5.2 mm
- Net Weight
- 1.4 kg (3.09 lb)
- Protection Type
- short circuit, overload of output voltage, safe torque off
- Standards
- EN 61800-3, IEC 50178, IEC 50347, IEC 60072-1
- Relative Humidity
- 15-85% without condensation
- Operating Altitude
- <= 1000 m without derating
- Shock Resistance
- 150 m/s² 1000 shocks
- Transmission Rate
- 125, 250, 500 kbauds
- Electrical Connection
- industrial connector
- Country of Origin
- Germany
- Sustainable Offer Status
- Green Premium product
Peak Stall Torque0.62 N.m (5.49 lbf.in)
Nominal Speed3200 rpm (24 V), 5100 rpm (48 V)
Supply Voltage Limits18-55.2 V
Voltage State 1 Guaranteed15...30 V
Associated Fuse Rating16 A
Maximum Radial Force89 N
Rotor Inertia0.095 kg.cm²
Network TypeDC
Motor TypeAC synchronous servo motor
Nominal Torque0.44 N.m
Holding Brakewithout
Accuracy Error+/- 0.05°
Feedback Typesingle turn encoder
Motor Flange Size57 mm (2.24 in)
Shaft Diameter9 mm (0.35 in)
Number Of Mounting Holes4
Centring Collar Depth1.6 mm
Circle Diameter Of The Mounting Holes66.6 mm
Type Of Coolingnatural convection
IP Degree of ProtectionIP41 (shaft bushing), IP54 (total except shaft bushing)
Product CertificationscUL, TUV, UL
Ambient Air Temperature for Storage-25 to 70 °C
Vibration Resistance20 m/s² (10-500 Hz) 10 cycles
Communication InterfaceEthernet/IP, integrated
Input/Output Type4 signals (each can be input or output)
RoHS CompliancePro-active compliance, Mercury free, PVC free
Warranty18 months
