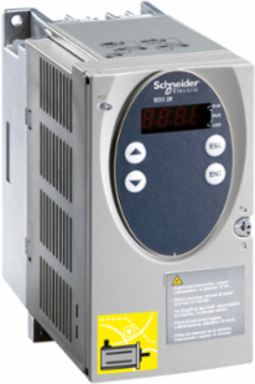

Schneider Electric SD328AU25S2 Lexium SD3 Stepper Motor Drive, 2.5 A, 270 W, 3000 RPM, IP20/IP40
- MPN: SD328AU25S2
- PPN: SCH-SD328AU25S2
CAD
$1822.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Lexium SD3 Stepper Motor Drive, 2.5 A, 270 W, 3000 RPM, IP20/IP40
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, United States
Depth140 mm
Communications & Management Attributes
- Communication Interface
- CANopen, Integrated, analogue input, Integrated, Modbus, Integrated
Communication Service1 PDO configurable CANopen, 2 SDOs receive CANopen, 2 SDOs send CANopen, 3 PDOs as per DSP 402 CANopen, CiA DSP 402 profile CANopen, diagnostics (08) Modbus, emergency CANopen, note guarding, heartbeat CANopen, read device identification (43) Modbus, read hold register (03), maximum 63 words Modbus, read/write multiple registers (23), maximum 63/59 words Modbus, write multiple registers (16), maximum 61 words Modbus, write single register (06) Modbus
Complementary Attributes
- Maximum Input Frequency
- 200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction, 400 kHz signal input ENC_A, ENC_B, ENC_I A/B
- Maximum Voltage Drop
- <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals<1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals, <1 V 50 mA load 24 V output signals
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Switching Current
- 50 mA 24 V output signals)
Maximum Output Frequency400 kHz pulse/direction interface A/B, 200 kHz pulse/direction interface pulse/direction
Maximum Leakage Current30 mA <10 m IEC 60990-3
Maximum Motor Phase Current2.5 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Associated Fuse Rating
- 6 A 115 V, 6 A 230 V
- Data Format
- 8 bits, 1 stop, even parity Modbus, 8 bits, no parity, 1 stop Modbus, 8 bits, no parity, 2 stop Modbus, 8 bits, odd parity, 1 stop Modbus
- Electromagnetic Compatibility
- electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
- Local Signalling
- 1 LED - ERR CANopen, 1 LED - RUN CANopen
- Number Of Addresses
- 1-127 CANopen, 1-247 Modbus
- Residual Ripple
- < 5 % 24 V control voltage), < 5 % 24 V control voltage)< 5 % 24 V control voltage), < 5 % 24 V control voltage)
- Safety Function
- safe torque off safety function system process IEC/EN 61800-5-2safe torque off safety function machine IEC/EN 61800-5-2, safe torque off safety function machine ISO 13849-1 level d, safe torque off safety function system process EN/IEC 61508 level SIL2
- Supply Voltage Limits
- 200-240 V, 100-120 V
- Vibration Resistance
- 1 gn (f= 13-150 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
- Certificate Agency
- UL, cUL, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1621790207, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0104122834
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 541 kg CO2 eq., 540.778
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - drive & motor
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI111103EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1901
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Bus Type
- fieldbus
- Device Short Name
- SD328
- Inrush Current
- 60 A
- Method Of Access
- slave CANopen
- Network Frequency Limits
- 50-60 Hz - 15...10 %)
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Lexium SD3
- Shock Resistance
- 15 gn 11 ms IEC 60068-2-27
- Supply Voltage Type
- AC/DC
- Total Lifecycle Carbon Footprint
- 567 kg CO2 eq.
- Voltage State 1 Guaranteed
- 15...30 V 24 V input signals
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Germany
- Energy Model - Use [B6]
- Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
- Height Nominal
- 145 mm
- Short-circuit Current
- 0.5 kA
- Package Weight(Lbs)
- 1.247 kg
- Warranty (In Months)
- 18
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 6138.3
- Net Use Of Fresh Water (M3) Operational Energy Use [B6]
- 1960.84
- Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 9427.18
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 1373.4
- Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1373.4
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Current Consumption<= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage3 A 230 V main supply, 4 A 115 V main supply, <= 0.2 mA 24 V control voltage, <= 0.2 mA 24 V control voltage
Electrical Connectionconnector RJ45 CANopen interface, connector RJ45 Modbus interface, spring terminal CANopen interface
Installed Device127 stepper motor drives CANopen, 31 stepper motor drives Modbus
Nominal Power180 W 115 V, 270 W 230 V
Power Losses<= 26 W, <= 26 W
Resistance5 kOhm pulse/direction interface), 10 kOhm analogue input signals)
Supply Voltage Descriptionsingle phase 230 V, single phase 115 V
Transmission Rate125 kbps, 250 kbps, 500 kbps, 1 Mbps CANopen, 9600, 19200, 38400 bps Modbus
Voltage State 0 Guaranteed-3...5 V 24 V input signals, -3...5 V 24 V input signals-3...5 V 24 V input signals, -3...5 V 24 V input signals
[Us] Rated Supply Voltage100...120 V - 15...10 %, 200...230 V - 15...10 %
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5349455732, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]26 kg CO2 eq., 25.8055294586
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Use Carbon Footprint540.778
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Compatibility CodeSD328
Format Of The Driveblock
MarkingCE
Mode Of TransmissionRTU Modbus
Network Number Of Phases1
Phasesingle phase
Product Or Component Typemotion stepper drive
ReturnabilityNo
Software VersionEIME v5.6.0.1
Sustainable PackagingNo
Type Of Coolingnatural convection
Pep CodeENVPEP1111015EN
Pep Verification Date2020-10-01
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo drive 3-phase stepper motors 70% of the time for 10 years
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh1103.76
Energy Model - Installation [A5]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity grid mix; AC; consumption mix, at consumer; < 1kV; EU-27
Width Nominal72 mm
Nbr. Of Units In Pkg.1
Take-backNo
Air Pollution (M3) Operational Energy Use [B6]23275
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]540.778
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]2016.28
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]10800.58
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]9427.18
Water Pollution (M3) Operational Energy Use [B6]22314.6
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-50 °C
- Environmental Disclosure
- ENVPEP1111015EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1111015EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
Ip Degree Of ProtectionIP20, on upper part: IP40 (without removal of protective film)
Take BackNo
China Rohs RegulationX
Carbon Footprint567.291066336
Circularity ProfileENVEOLI111103EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity5-85 % without condensation
Pep Verification Date2020-10-01
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium SD3
Product Or Component Typemotion stepper drive
ETIM
- ETIM 8
- EC001857
ETIM 9EC001857
Output Attributes
- Maximum Output Frequency
- 400 kHz pulse/direction interface A/B, 200 kHz pulse/direction interface pulse/direction
Output Voltage<= 30 V 24 V output signals), <= 30 V 24 V output signals)<= 30 V 24 V output signals), <= 30 V 24 V output signals), 4.75...5.25 V ENC+5V_OUT signal output)
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Voltage
- -10...10 V analogue input signals, -10...10 V analogue input signals24 V -15 %/+20 % 24 V control voltage, -10...10 V analogue input signals, -10...10 V analogue input signals
- Analogue Input Type
- voltage - 10...10 V 14 bits 0.25 ms
Maximum Input Frequency200 kHz signal input ENC_A, ENC_B, ENC_I pulse/direction, 400 kHz signal input ENC_A, ENC_B, ENC_I A/B
Input Current10 mA 24 V input signals
