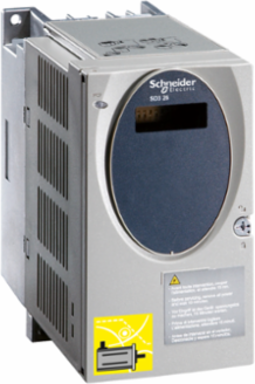

Schneider Electric SD326DU25S2 Lexium SD3 Stepper Motor Drive, 2.5A, 3000 RPM, IP20/IP40

  • MPN: SD326DU25S2
  • PPN: SCH-SD326DU25S2
  • UNSPSC: 26111515

CAD

$1423.02

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

This product is part of the Lexium SD3 and motors an offer of 3-phase stepper drives and stepper motors. The 3-phase stepper motor drive with an integrated pulse/direction communication interface. High torque is available even at low speeds. It is a motor drive with a rated supply voltage of 100V to 120V, 200V to 230V, a motor phase current of 2.5A, a nominal power of 270W at 230V and maximum mechanical speed of motor drive is 3000RPM. It is provided with natural convection cooling method. It is an IP20 and IP40 rated product. Its dimensions are 72mm (Width) x 140mm (Depth) x 145mm (Height). It weighs 1.1kg. The Lexium SD3 with its excellent constant velocity characteristics is ideal for applications such as printing, paper, packaging, handling, labelling, textile industry, scanning, food and beverages. This product is certified by CUL, CE and UL. It meets EN/IEC 50178, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 environment 1, EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. The SD3 is an universally applicable stepper motor drive. The package is ready for operation within a very short period of time. Connect the stepper motor to the drive, set the current and step resolution. Stepper drives and stepper motors for motion control.

Features

  • Truly simple
  • Extremely compact
  • High flexibility
  • Integrated safety function
  • Plug and play for easy automation
  • Universally applicable
  • Ready for operation within a very short period of time
  • IP20 and IP40 degree of protection
  • Wide range of operating temperature from 32°F to 122°F

Documentation & Downloads

Specifications

Key Specifications

Country of OriginGermany
Depth140 mm
Weight1232 g

Communications & Management Attributes

Communication Interfacepulse/direction, Integrated

Complementary Attributes

Maximum Input Frequency200 kHz 24 V optocoupler input signals, 200 kHz 5 V optocoupler input signals
Us Rated Supply Voltage100...120 V - 15...10 %, 200...230 V - 15...10 %
Maximum Mechanical Speed3000 rpm
Maximum Switching Current200 mA readiness signal output)
Maximum Voltage Drop<1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output<1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output, <1 V 50 mA load readiness signal output
Maximum Leakage Current30 mA IEC 60990-3
Maximum Motor Phase Current2.5 A
Maximum Switching Voltage30 V DC readiness signal output)

Important Information Attributes

Persona Type IdsEU, OM, OM8
Associated Fuse Rating6 A 115 V, 6 A 230 V
Supply Voltage Descriptionsingle phase 230 V, single phase 115 V
Voltage State 0 Guaranteed<= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals<= 5 V 24 V optocoupler input signals, <= 5 V 24 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals, <= 0.5 V 5 V optocoupler input signals
Carbon Footprint Of The Distribution Phase A40.43279111068235077, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.5 kg CO2 eq., 0.4700504064615276
Carbon Footprint Of The Use Phase B2 B3 B4 B6408 kg CO2 eq., 407.7530539415158
Local Publishable Date2026-01-12
Device TypeMotion - drive & motor
TraceabilityYes
Average Life Duration15 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Device Short NameSD326
Inrush Current60 A
Network Frequency Limits50-60 Hz - 15...10 %)
Nominal Power180 W 115 V270 W 230 V
Phasesingle phase
Product Or Component Typemotion stepper drive
ReturnabilityYes
Software Versionv6.2.5-6
Sustainable PackagingNo
Type Of Coolingnatural convection
Voltage State 1 Guaranteed15...30 V 24 V optocoupler input signals2.5...5.25 V 5 V optocoupler input signals
Data Sourceextrapolated product
Width Nominal72 mm
Customs Code8504404000
Warranty In Months18
Functional Unit Quantity1
Reference Lifetime In Y10
Recyclability Potential In %98
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
Supply Voltage Limits100-120 V, 200-240 V
Certificate AgencyUL, cUL
Carbon Footprint Of The End Of Life Phase C1 To C41.8513583324231988, 2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A390 kg CO2 eq., 89.67700989334628
Local Data StatusPublishable
Return IndicatorY
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI111103EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionAdvanced
Market SegmentationIndustrial
Compatibility CodeSD326
Format Of The Driveblock
MarkingCE
Network Number Of Phases1
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductLexium SD3
Shock Resistance15 gn 11 ms IEC 60068-2-27
Supply Voltage TypeAC/DC
Total Lifecycle Carbon Footprint500 kg CO2 eq.
Vibration Resistance1 gn (f= 13-150 Hz) conforming to IEC 60068-2-61.5 mm (f= 3-13 Hz) conforming to IEC 60068-2-6
Database Version2024-01
Height Nominal145 mm
Nbr. Of Units In Pkg.1
Short Circuit Current0.5 kA
Functional Unit DescriptionTo drive 3-phase stepper motors 70% of the time for 10 years.
Functional Unit Unitunit
Energy Consumption On Product Lifetime In Kwh788.4

Environment Attributes Main

Ambient Air Temperature For Operation0-50 °C, 0-40 °C UL
Ip Degree Of ProtectionIP20, on upper part: IP40 (without removal of protective film)
Take BackNo
China Rohs RegulationX
Carbon Footprint500.1842636844292
Environmental DisclosureENVPEP1111015EN
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1111015EN
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm), > 3280.84...< 6561.68 ft (> 1000...< 2000 m) without derating maximum ambient temperature 40°C, no protective film, lateral distance of > 50mm)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI111103EN
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Relative Humidity5-85 % without condensation
Pep Verification Date2026-06-30
Psr VersionNo PSR

General Attributes

Phasesingle phase
Range Of ProductLexium SD3
Product Or Component Typemotion stepper drive

ETIM

ETIM 8EC001857
ETIM 10EC001857
ETIM 9EC001857

Contractual Warranty Attributes

Warranty Period18 months
Warranty18 months

Input Attributes

Input Current25 mA 5 V optocoupler input signals7 mA 24 V optocoupler input signals
