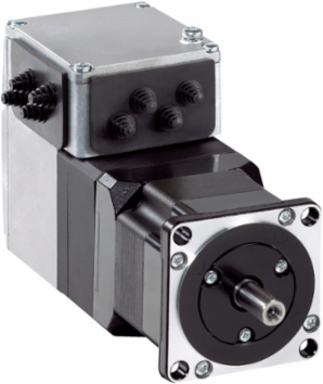

Schneider Electric ILA2T572PC2A0 integrated drive ILA with servo motor - 24..48 V - Modbus TCP - indus connector
Schneider Electric ILA2T572PC2A0 integrated drive ILA with servo motor - 24..48 V - Modbus TCP - indus connector
- MPN: ILA2T572PC2A0
- PPN: SCH-ILA2T572PC2A0
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3781.69/ EA
Description
integrated drive ILA with servo motor - 24..48 V - Modbus TCP - indus connector
Specifications
Environment
- Product Certifications
- TÜV || cUL || UL
- Ambient Air Temperature For Operation
- 40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to IEC 60034-5 || IP54 total except shaft bushing: conforming to IEC 60034-5
StandardsIEC 61800-3, Ed 2 || IEC 61800-3 || IEC 50178 || EN 61800-3:2001, second environment || IEC 60072-1 || IEC 50347 || EN 61800-3 : 2001-02
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2011004EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI2011004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Circle Diameter Of The Mounting Holes
- 66.6 mm
- Commissioning Interface
- RS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
- Maximum Radial Force Fr
- 107 N
- Number Of Motor Stacks
- 2
- Continuous Stall Torque
- 0.78 N.m
- Discrete Input Current
- 10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface
- Marking
- CE
- Net Weight
- 1.7 kg
- Centring Collar Diameter
- 50 mm
- Peak Stall Torque
- 1.62 N.m
- Shaft Diameter
- 9 mm
- Supply Voltage Limits
- 18-55.2 V
- Speed Feedback Resolution
- 16384 points/turn x 4096 turns
- Service Life In Hours
- 20000 h bearing
- Feedback Type
- multi turn encoder
- Transmission Rate
- 10, 100 Mbits
- Input/Output Type
- 4 signals (each be used as input or output)
- Associated Fuse Rating
- 16 A
Current Consumption7000 mA maximum continuous || 8500 mA peak
Maximum Switching Current100 mA per output || 200 mA total
Mounting Supportflange
Rotor Inertia0.173 kg.cm²
Centring Collar Depth1.6 mm
Second Shaftwithout second shaft end
Shaft Length20 mm
Voltage State 0 Guaranteed-3...4.5 V
Motor Flange Size57 mm
Number Of Mounting Holes4
Discrete Output Voltage23...25 V
Mounting Holes Diameter5.2 mm
Type Of Coolingnatural convection
Shaft Enduntapped
Protection Typeshort circuit of the output voltage || safe torque off || overload of output voltage
Accuracy Error+/- 0.05 °
Maximum Axial Force Fa104 N force pressure) || 104 N tensile force)
Voltage State 1 Guaranteed15...30 V
Specifications
- Range Of Product
- Lexium integrated drive
- Winding Type
- medium speed of rotation and medium torque
- Holding Brake
- without
- Network Number Of Phases
- single phase
- [Us] Rated Supply Voltage
- 24 V || 48 V
- Gear Box Type
- without
- Nominal Speed
- 1600 rpm 24 V || 3400 rpm 48 V
- Nominal Torque
- 0.78 N.m
Network TypeDC
Number Of Motor Poles6
Product Or Component Typemotion integrated drive
Length207.8 mm
Communication InterfaceModbus TCP, integrated
Motor TypeAC synchronous servo motor
Electrical Connectionindustrial connector
Device Short NameILA
