Schneider Electric ILS1M851PB1F0 Integrated Stepper Motor Drive, 24V-36V, 5A, 4.4 kg, 2000 RPM
- MPN: ILS1M851PB1F0
- PPN: SCH-ILS1M851PB1F0
CAD
$2901.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
The integrated stepper motor drive from Schneider Electric is engineered for precision and reliability in automation and control applications. Operating within a voltage range of 24V to 36V and delivering up to 5A, this drive is capable of achieving impressive speeds of up to 2000 RPM, making it suitable for demanding motion control tasks. Weighing 4.4 kg, this robust solution combines effective performance with compact design, streamlining integration into various systems while enhancing overall efficiency in motion control operations.
Documentation & Downloads
Specifications
Additional
- Rated Supply Voltage
- 24 V, 36 V
- Nominal Speed
- 200 rpm @ 24 V, 400 rpm @ 36 V
- Holding Torque
- 6 N.m holding brake, 2 N.m
- Continuous Stall Torque
- 2 N.m
- Maximum Radial Force
- 100 N

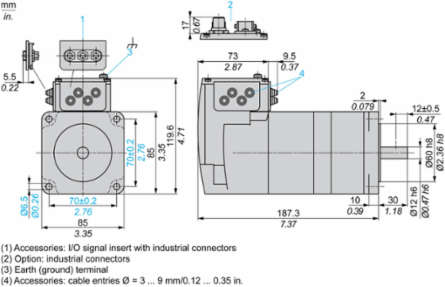

- Length
- 187.3 mm (7.37 in)
- Shaft Diameter
- 12 mm (0.47 in)
- Centring Collar Diameter
- 60 mm (2.36 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 99 mm (3.90 in)
- Motor Type
- 3-phase stepper motor
- Number of Motor Stacks
- 1

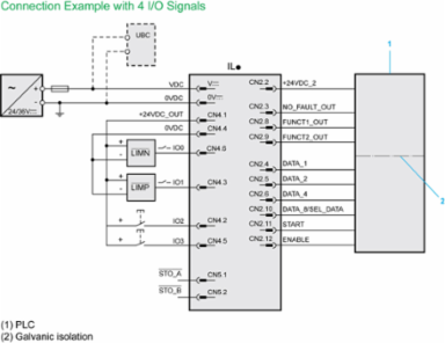

- Electrical Connection
- printed circuit board connector
- Type of Cooling
- natural convection
- Accuracy Error
- +/- 6 arc min
- Brake Pull-in Power
- 22 W
- Brake Application Time
- 20 ms
- Shock Resistance
- 150 m/s², 1000 shocks (EN/IEC 60068-2-29)
- Ambient Operating Temperature
- 0-50 °C without derating; 50-65 °C with derating
- Operating Altitude
- <= 1000 m without derating
- Standards
- EN 50347, EN 61800-3:2001 second environment, IEC 60072-1, EN/IEC 50178, IEC 61800-3 Ed 2
- RoHS Compliance
- Yes, Mercury free, PVC free, China RoHS compliant
Current5 A maximum continuous
Nominal Torque2 N.m
Peak Stall Torque2 N.m
Maximum Mechanical Speed2000 rpm
Maximum Axial Force170 N tensile, 30 N pressure
Motor Flange Size85 mm (3.35 in)
Shaft Length30 mm (1.18 in)
Mounting Supportflange
Mounting Holes Diameter6.5 mm (0.26 in)
Shaft Enduntapped
Number of Motor Poles6
Winding Typemedium speed of rotation and medium torque
Protection Typesafe torque off, overload of output voltage, short circuit of the output voltage
Speed Feedback Resolution20000 points/turn
Rotor Inertia1.3 kg.cm²
Brake Release Time40 ms
Ingress Protection DegreeIP41 shaft bushing, IP54 total except shaft bushing (EN/IEC 60034-5)
Vibration Resistance20 m/s² 10-500 Hz, 10 cycles (EN/IEC 60068-2-6)
Ambient Storage Temperature-25 to 70 °C
Relative Humidity15-85 % without condensation
Product CertificationsTÜV, cUL, UL
Country of OriginGermany
