Schneider Electric ILS1U851PB1A0 Integrated Drive with 3-Phase Stepper Motor, 24-36V, 5A, 2000 RPM
Schneider Electric ILS1U851PB1A0 Integrated Drive with 3-Phase Stepper Motor, 24-36V, 5A, 2000 RPM
- MPN: ILS1U851PB1A0
- PPN: SCH-ILS1U851PB1A0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$1793.78/ EA
Description
The Integrated Drive from Schneider Electric combines advanced technology with precision, featuring a 3-phase stepper motor that operates efficiently within a 24-36V range. Capable of delivering up to 5A of current and reaching speeds of 2000 RPM, this drive is engineered to enhance motion control applications in automation systems. Its robust design ensures reliable performance, making it an invaluable asset for professionals seeking to optimize their control processes and achieve seamless integration in their projects.
Specifications
- Supply Voltage
- 24 V, 36 V
- Nominal Speed
- 200 rpm at 24 V, 400 rpm at 36 V
- Nominal Torque
- 2 N.m (17.7 lbf.in)
- Peak Stall Torque
- 2 N.m (17.7 lbf.in)
- Number of Motor Poles
- 6
- Motor Type
- 3-phase stepper motor
- Associated Fuse Rating
- 10 A
- Voltage State 1 Guaranteed
- 15 to 30 V
- Discrete Output Voltage
- 23 to 25 V
- Speed Feedback Resolution
- 1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°
- Maximum Radial Force
- 100 N
- Service Life
- 20000 hours bearing
- Electrical Connection
- Printed circuit board connector

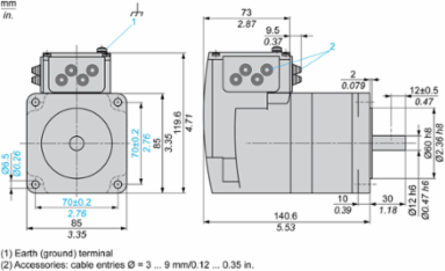

- Motor Flange Size
- 85 mm (3.35 in)
- Centring Collar Diameter
- 60 mm (2.36 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 99 mm (3.90 in)
- Shaft Length
- 30 mm (1.18 in)
- Protection Type
- Overload of output voltage, short circuit of output voltage, safe torque off
- Type of Cooling
- Natural convection
- Product Certifications
- cUL, UL, TÜV
- Permissible Ambient Air Temperature Around Device
- 105 °C (221 °F) power amplifier, 110 °C (230 °F) motor
- Operating Altitude
- ≤ 1000 m (3280.84 ft) without derating
- Vibration Resistance
- 20 m/s² 10 to 500 Hz, 10 cycles
- IP Degree of Protection
- IP41 shaft bushing, IP54 total except shaft bushing
- Mercury Free
- Yes
- Warranty
- 18 months
Current5 A maximum continuous
Maximum Mechanical Speed2000 rpm
Holding Torque2 N.m (17.7 lbf.in)
Continuous Stall Torque2 N.m (17.7 lbf.in)
PhaseSingle phase
Supply Voltage Limits18 to 40 V
Voltage State 0 Guaranteed-3 to 4.5 V
Discrete Input Current10 mA at 24 V safety input
Maximum Switching Current100 mA per output, 200 mA total
Rotor Inertia1.1 kg.cm²
Maximum Axial Force170 N tensile, 30 N pressure
Length140.6 mm (5.54 in)
Mounting SupportFlange
Number of Motor Stacks1
Centring Collar Depth2 mm (0.08 in)
Mounting Holes Diameter6.5 mm (0.26 in)
Shaft Diameter12 mm (0.47 in)
Net Weight2.6 kg (5.73 lb)
MarkingCE
StandardsEN 61800-3:2001 second environment, IEC 60072-1, EN/IEC 61800-3, EN 50347, EN/IEC 50178, IEC 61800-3 Ed 2
Ambient Air Temperature for Operation0 to 50 °C (32 to 122 °F) without derating, 50 to 65 °C (122 to 149 °F) with derating 2% per °C
Ambient Air Temperature for Storage-25 to 70 °C (-13 to 158 °F)
Relative Humidity15 to 85% without condensation
Shock Resistance150 m/s², 1000 shocks
Sustainable Offer StatusGreen Premium product
PVC FreeYes
