Schneider Electric ILS2K852PC1F0 Integrated Drive ILS, 24-48V, 5A, 3-Phase Stepper Motor, 5.4 kg
Schneider Electric ILS2K852PC1F0 Integrated Drive ILS, 24-48V, 5A, 3-Phase Stepper Motor, 5.4 kg
- MPN: ILS2K852PC1F0
- PPN: SCH-ILS2K852PC1F0
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3439.71/ EA
Description
The Integrated Drive from Schneider Electric offers a seamless solution for your automation and motion control needs, designed specifically for use with 3-phase stepper motors. Operating within a voltage range of 24-48V and providing a current output of 5A, this drive ensures efficient motor control for various applications. Ideal for projects that demand reliable performance, its robust engineering and thoughtful design allow for smooth and precise motion control in automated systems. With a weight of 5.4 kg, it is engineered to meet the demands of modern industrial settings, making it a dependable choice for professionals seeking optimal performance in motion control technology.
Specifications
- Voltage
- 18-55 V supply voltage limits
- Nominal Speed
- 180 rpm at 24 V, 360 rpm at 48 V
- Holding Torque
- 6 N.m with holding brake, 4 N.m without
- Continuous Stall Torque
- 4 N.m (35.40 lbf.in)
- Maximum Radial Force
- 100 N
- Brake Pull-In Power
- 22 W
- Brake Application Time
- 20 ms
- Number of Motor Poles
- 6
- Phase
- Single phase
- Accuracy Error
- +/- 6 arc min
- Input/Output Type
- 4 signals (each used as input or output)
- Voltage State 1 Guaranteed
- 15 to 30 V
- Discrete Output Voltage
- 23 to 25 V
- Protection Type
- Short circuit, Safe torque off, Overload of output voltage

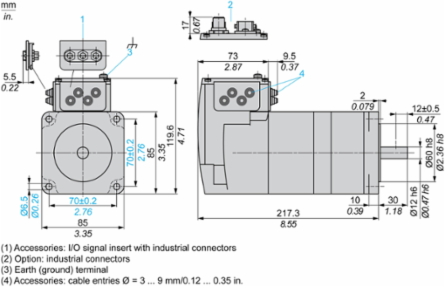

- Length
- 217.3 mm (8.56 in)
- Centring Collar Diameter
- 60 mm (2.36 in)
- Number of Mounting Holes
- 4
- Circle Diameter of Mounting Holes
- 99 mm (3.90 in)
- Shaft Length
- 30 mm (1.18 in)
- Shaft End
- Untapped
- Net Weight
- 5.4 kg (11.9 lb)
- Feedback Type
- Index pulse
- Communication Interface
- Ethernet/IP, integrated
- Network Number Of Phases
- Single phase
- Winding Type
- Medium speed and medium torque
- Standards
- IEC 50347, EN 61800-3:2001, IEC 61800-3, IEC 50178, IEC 60072-1
- Marking
- CE
- RoHS Compliance
- RoHS compliant, Mercury free
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1411002EN
- WEEE
- Must be disposed per EU waste collection
- Ambient Air Temperature for Operation
- 0 to 40 °C without derating, 40 to 55 °C with derating (2%/°C)
- Ambient Air Temperature for Storage
- -25 to 70 °C
- Vibration Resistance
- 20 m/s² (10-500 Hz) 10 cycles IEC 60068-2-6
- Service Life
- 20,000 h bearing
Current5 A maximum continuous (5000 mA)
Nominal Torque4 N.m (35.4 lbf.in)
Peak Stall Torque4 N.m (35.40 lbf.in)
Maximum Mechanical Speed3000 rpm
Maximum Axial Force170 N tensile, 30 N pressure
Brake Release Time40 ms
Motor Type3-phase stepper motor
Number of Motor Stacks2
Speed Feedback Resolution20000 points/turn
Rotor Inertia2.4 kg.cm²
Voltage State 0 Guaranteed-3 to 4.5 V
Discrete Input Current10 mA at 24 V safety input, 2 mA at 24 V signal interface
Maximum Switching Current100 mA per output, 200 mA total
Type of CoolingNatural convection
Motor Flange Size85 mm (3.35 in)
Centring Collar Depth2 mm
Mounting Holes Diameter6.5 mm (0.26 in)
Shaft Diameter12 mm (0.47 in)
Mounting SupportFlange
Second ShaftWithout second shaft end
Electrical ConnectionIndustrial connector
Transmission Rate125, 250, 500 kbauds
Commissioning InterfaceRS485 Modbus TCP 9.6, 19.2, 38.4 kbauds
Network TypeDC
Gear Box TypeWithout
Product CertificationscUL, TÜV, UL
EU RoHS DirectivePro-active compliance (product out of EU RoHS legal scope)
China RoHS RegulationCompliant
Reach RegulationContains Substances of Very High Concern above threshold
Circularity ProfileENVEOLI1411002EN
Operating Altitude<= 1000 m without derating
Permissible Ambient Temperature Around Device105 °C power amplifier, 110 °C motor
Relative Humidity15 to 85% without condensation
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
