Schneider Electric ILS1W851PB1F0 Integrated Drive with Stepper Motor, 24-36V, 5A, 200 RPM, 4.4 kg
- MPN: ILS1W851PB1F0
- PPN: SCH-ILS1W851PB1F0
CAD
$2726.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This integrated drive from Schneider Electric offers an efficient solution for precise motion control, combining advanced technology with a robust stepper motor. Operating within a voltage range of 24-36V and delivering a steady 5A current, it achieves a maximum speed of 200 RPM, making it well-suited for various automation applications. Weighing 4.4 kg, this drive ensures reliable performance in compact setups and is designed to streamline the integration of motion control in automated systems. With its reliable engineering, it stands out as a vital component for enhancing the efficiency and effectiveness of your automation tasks.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France
Communications & Management Attributes

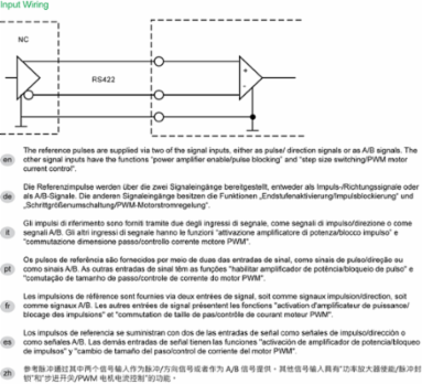

- Communication Interface
- pulse/direction 5 V RS422, Integrated
Physical Attributes

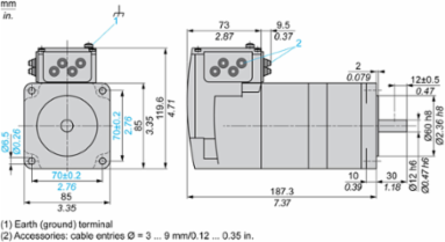

- Motor Flange Size
- 85 mm
Shaft Length30 mm
Complementary Attributes
- Maximum Axial Force Fa
- 170 N tensile force)30 N force pressure)
- Maximum Radial Force Fr
- 100 N
Maximum Mechanical Speed2000 rpm
Maximum Switching Current100 mA per output200 mA total
Important Information Attributes
- Coefficient 1 1
- -1.371 N.m/rpm, -1.371 N.m/rpm
- Coefficient 2 2
- -3.427 N.m/rpm², -3.427 N.m/rpm²
- Protection Type
- safe torque off, short circuit of the output voltage, overload of output voltage
- Supply Voltage Description
- single phase 24 V DC, single phase 36 V DC
- Certificate Agency
- cUL, UL, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 5.022235536097207, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 1.799097153557694, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 494 kg CO2 eq., 493.5020278241975
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Motion - integrated drive
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Brake Application Time
- 20 ms
- Centring Collar Diameter
- 60 mm
- Coefficient 1 0
- 8.711 N.m
- Coefficient 2 0
- 10.68 N.m
- Coefficient 2 3
- 0.606 N.m/rpm3
- Continuous Stall Torque
- 2 N.m
- Curve Type
- semilog
- Electrical Connection
- printed circuit board connector
- Gear Box Type
- without
- Marking
- CE
- Mounting Holes Diameter
- 6.5 mm
- Network Number Of Phases
- 1
- Nominal Speed
- 200 rpm 24 V400 rpm 36 V
- Number Of Motor Poles
- 6
- Number Of Mounting Holes
- 4
- Phase
- single phase
- Product Or Component Type
- motion integrated drive
- Returnability
- No
- Second Shaft
- without second shaft end
- Shaft Diameter
- 12 mm
- Shock Resistance
- 150 m/s² 1000 shocks IEC 60068-2-29
- Software Version
- v6.2.5-6
- Sustainable Packaging
- No
- Type Of Cooling
- natural convection
- Voltage 1
- 24 V
- Voltage 1 Speed 1 Max
- 178.172 rpm
- Voltage 2 Speed 2
- 456.095 rpm
- Voltage State 1 Guaranteed
- 15...30 V
- Pep Code
- ENVPEP1411002EN
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Length Total
- 187.3 mm
- Accuracy Error [Angular]
- 0.1 °
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8501512040
Coefficient 1 2-1.429 N.m/rpm², -1.429 N.m/rpm²
Holding Torque6 N.m holding brake, 2 N.m
Speed Feedback Resolution1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036°, 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Voltage State 0 Guaranteed-3...4.5 V, -3...4.5 V
[Us] Rated Supply Voltage36 V, 24 V
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 3.6141981055783585
Carbon Footprint Of The Manufacturing Phase [A1 To A3]40 kg CO2 eq., 40.46110720132592
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeOut
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1411002EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Associated Fuse Rating10 A
Brake Release Time40 ms
Circle Diameter Of The Mounting Holes99 mm
Coefficient 1 30.317 N.m/rpm3
Coefficient 2 11.559 N.m/rpm
Compatibility CodeILS
Current Consumption5000 mA maximum continuous
Device Short NameILS
Feedback Typeindex pulse
Holding Brakewith
Motor Type3-phase stepper motor
Mounting Supportflange
Network TypeDC
Nominal Torque2 N.m
Number Of Motor Stacks1
Peak Stall Torque2 N.m
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Range Of ProductLexium integrated drive
Rotor Inertia1.3 kg.cm²
Service Life In Hours20000 h bearing
Shaft Enduntapped
Sizing ReferenceILS1_851P
Supply Voltage Limits18-40 V
Total Lifecycle Carbon Footprint544 kg CO2 eq.
Vibration Resistance20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Voltage 1 Speed 1178.172 rpm
Voltage 236 V
Voltage 2 Speed 2 Max456.095 rpm
Winding Typemedium speed of rotation and medium torque
Database Version2024-01
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo coordinate and synchronize motion control with stepper, servo or burshless DC motor with an active mode 40% of the time with a power consumption of 32W, in stand-by mode 30% of the time with a power consumption of 15W, and in off mode 30% of the time with zero power consumption, over a period of 10 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Germany, DE
Recyclability Potential In %85
Input/Output Type4 signals (each be used as input or output)
Brake Pull-in Power22 W
Package Weight(Lbs)3.400 kg
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-70 °C, -25-70 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 544.3986658207567
- Circularity Profile
- ENVEOLI1411002EN
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Permissible Ambient Air Temperature Around The Device
- 105 °C power amplifier110 °C motor
- Relative Humidity
- 15-85 % without condensation
- Pep Verification Date
- 2026-03-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Operating Altitude<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation50-65 °C (with power derating of 2 % per °C)0-50 °C (without derating)
Environmental DisclosureENVPEP1411002EN
Ip Degree Of ProtectionIP41 shaft bushing: conforming to IEC 60034-5IP54 total except shaft bushing: conforming to IEC 60034-5
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1411002EN
Pcr VersionPCR-4-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- single phase
- Range Of Product
- Lexium integrated drive
Product Or Component Typemotion integrated drive
ETIM
- ETIM 8
- EC001851
ETIM 9EC001851
Output Attributes
- Discrete Output Voltage
- 23...25 V
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Current
- 10-10 mA at 24 V safety input
