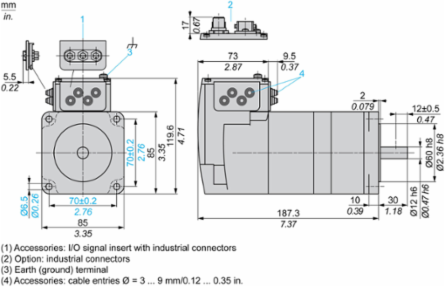

Schneider Electric ILS2K851PC1F0 integrated drive ILS with stepper motor - 24..48 V - EtherNet/IP - 5 A
Schneider Electric ILS2K851PC1F0 integrated drive ILS with stepper motor - 24..48 V - EtherNet/IP - 5 A
- MPN: ILS2K851PC1F0
- PPN: SCH-ILS2K851PC1F0
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3455.20/ EA
Description
integrated drive ILS with stepper motor - 24..48 V - EtherNet/IP - 5 A
Specifications
Environment
- Product Certifications
- UL || TÜV || cUL
- Ambient Air Temperature For Operation
- 40-55 °C with power derating of 2 % per °C) || 0-40 °C without derating)
- Vibration Resistance
- 20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
- Ambient Air Temperature For Storage
- -25-70 °C
- Ip Degree Of Protection
- IP41 shaft bushing: conforming to IEC 60034-5 || IP54 total except shaft bushing: conforming to IEC 60034-5
StandardsEN 61800-3:2001, second environment || IEC 60072-1 || EN 61800-3 : 2001-02 || IEC 50178 || IEC 50347 || IEC 61800-3 || IEC 61800-3, Ed 2
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1411002EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1411002EN
Complementary
- Circle Diameter Of The Mounting Holes
- 99 mm
- Maximum Mechanical Speed
- 3000 rpm
- Maximum Switching Current
- 100 mA per output || 200 mA total
- Mounting Support
- flange
- Rotor Inertia
- 1.3 kg.cm²
- Centring Collar Depth
- 2 mm
- Second Shaft
- without second shaft end
- Shaft Length
- 30 mm
- Net Weight
- 4.4 kg
- Centring Collar Diameter
- 60 mm
- Brake Release Time
- 40 ms
- Number Of Mounting Holes
- 4
- Discrete Output Voltage
- 23...25 V
- Mounting Holes Diameter
- 6.5 mm
- Type Of Cooling
- natural convection
- Shaft End
- untapped
- Protection Type
- short circuit of the output voltage || overload of output voltage || safe torque off
- Accuracy Error
- +/- 6 arc min
- Input/Output Type
- 4 signals (each be used as input or output)
- Associated Fuse Rating
- 16 A
Current Consumption5000 mA maximum continuous
Commissioning InterfaceRS485 Modbus TCP 9.6, 19.2 and 38.4 kbauds)
Maximum Radial Force Fr100 N
Number Of Motor Stacks1
Continuous Stall Torque2 N.m
Discrete Input Current10-10 mA at 24 V safety input || 2-2 mA at 24 V 24 V signal interface
MarkingCE
Brake Pull-In Power22 W
Voltage State 0 Guaranteed-3...4.5 V
Motor Flange Size85 mm
Peak Stall Torque2 N.m
Shaft Diameter12 mm
Supply Voltage Limits18-55 V
Speed Feedback Resolution20000 points/turn
Service Life In Hours20000 h bearing
Feedback Typeindex pulse
Transmission Rate125, 250, 500 kbauds
Brake Application Time20 ms
Maximum Axial Force Fa170 N tensile force) || 30 N force pressure)
Voltage State 1 Guaranteed15...30 V
Specifications
- Range Of Product
- Lexium integrated drive
- Network Type
- DC
- Number Of Motor Poles
- 6
- Product Or Component Type
- motion integrated drive
- Length
- 187.3 mm
- Communication Interface
- Ethernet/IP, integrated
- Motor Type
- 3-phase stepper motor
- Electrical Connection
- industrial connector
- Device Short Name
- ILS
Holding Torque6 N.m holding brake || 2 N.m
Winding Typemedium speed of rotation and medium torque
Holding Brakewith
Network Number Of Phasessingle phase
[Us] Rated Supply Voltage24 V || 48 V
Gear Box Typewithout
Nominal Speed300 rpm 24 V || 600 rpm 48 V
Nominal Torque2 N.m
