Schneider Electric ILS1V851PB1A0 integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A

integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A
  • MPN: ILS1V851PB1A0
  • PPN: SCH-ILS1V851PB1A0

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1847.54/ EA

Description

integrated drive ILS with stepper motor - 24..36V- pulse/direction w/o RS422- 5A

Specifications

Environment

Product Certifications
UL || cUL || TÜV
Ambient Air Temperature For Operation
50-65 °C with power derating of 2 % per °C) || 0-50 °C without derating)
Vibration Resistance
20 m/s² 10-500 Hz) 10 cycles IEC 60068-2-6
Ambient Air Temperature For Storage
-25-70 °C
Ip Degree Of Protection
IP41 shaft bushing: conforming to IEC 60034-5 || IP54 total except shaft bushing: conforming to IEC 60034-5
StandardsIEC 50347 || IEC 61800-3, Ed 2 || IEC 50178 || IEC 60072-1 || IEC 61800-3 || EN 61800-3 : 2001-02 || EN 61800-3:2001, second environment
Shock Resistance150 m/s² 1000 shocks IEC 60068-2-29
Permissible Ambient Air Temperature Around The Device105 °C power amplifier || 110 °C motor
Relative Humidity15-85 % without condensation
Operating Altitude<= 1000 m without derating

Contractual warranty

Warranty
18 months

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP1411002EN
Pvc Free
Yes
Weee
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity Profile
ENVEOLI1411002EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Complementary

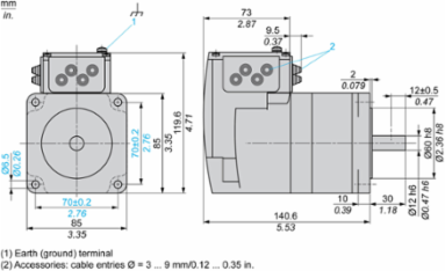

Circle Diameter Of The Mounting Holes
99 mm
Maximum Mechanical Speed
2000 rpm
Maximum Radial Force Fr
100 N
Number Of Motor Stacks
1
Continuous Stall Torque
2 N.m
Discrete Input Current
10-10 mA at 24 V safety input
Marking
CE
Net Weight
2.6 kg
Centring Collar Diameter
60 mm
Peak Stall Torque
2 N.m
Shaft Diameter
12 mm
Supply Voltage Limits
18-40 V
Speed Feedback Resolution
1.8°, 0.9°, 0.72°, 0.36°, 0.18°, 0.09°, 0.072°, 0.036° || 200, 400, 500, 1000, 2000, 4000, 5000, 10000 steps
Service Life In Hours
20000 h bearing
Feedback Type
index pulse
Accuracy Error
+/- 6 arc min
Maximum Axial Force Fa
170 N tensile force) || 30 N force pressure)
Voltage State 1 Guaranteed
15...30 V
Current Consumption5000 mA maximum continuous
Maximum Switching Current100 mA per output || 200 mA total
Mounting Supportflange
Rotor Inertia1.1 kg.cm²
Centring Collar Depth2 mm
Second Shaftwithout second shaft end
Shaft Length30 mm
Voltage State 0 Guaranteed-3...4.5 V
Motor Flange Size85 mm
Number Of Mounting Holes4
Discrete Output Voltage23...25 V
Mounting Holes Diameter6.5 mm
Type Of Coolingnatural convection
Shaft Enduntapped
Protection Typeshort circuit of the output voltage || overload of output voltage || safe torque off
Input/Output Type4 signals (each be used as input or output)
Associated Fuse Rating10 A

Specifications

Range Of Product
Lexium integrated drive
Network Type
DC
Number Of Motor Poles
6
Product Or Component Type
motion integrated drive
Length
140.6 mm
Communication Interface
pulse/direction 5 V without RS422, integrated
Motor Type
3-phase stepper motor
Electrical Connection
printed circuit board connector
Device Short Name
ILS
Holding Torque2 N.m
Winding Typemedium speed of rotation and medium torque
Holding Brakewithout
Network Number Of Phasessingle phase
[Us] Rated Supply Voltage36 V || 24 V
Gear Box Typewithout
Nominal Speed200 rpm 24 V || 400 rpm 36 V
Nominal Torque2 N.m
