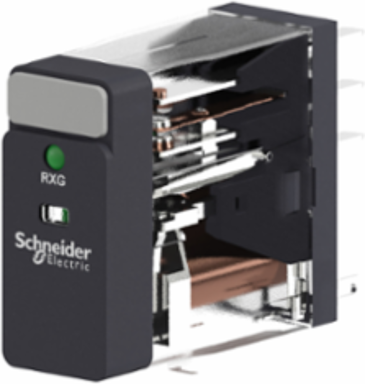

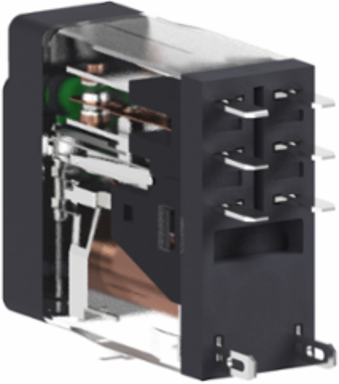

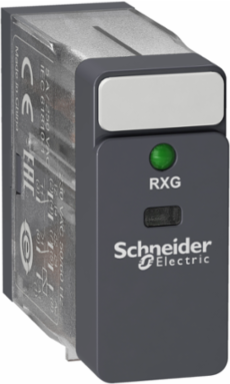

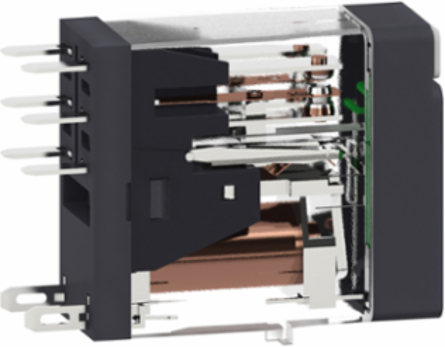

Schneider Electric RXG23E7 Harmony Electromechanical Relay, 5A, 48V AC, 2CO, LED Indicator
- MPN: RXG23E7
- PPN: SCH-RXG23E7
CAD
$20.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RXG plug-in relay socket has a coil control voltage of 48V AC and has 2 changeover contacts DPDT (double pole double throw) with a rating of 5A." "It has large choice of number of contacts for high rated current use with space-saving design." "It also offers LED indicator." "The faston pin terminal mounts quickly and securely." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony Electromechanical Relays
- Series Name
- interface relay
- Local Signalling
- flag
- [Ithe] Conventional Enclosed Thermal Current
- 5 A -40-55 °C
Product Or Component Typeplug-in relay
Contacts Type And Composition2 C/O
Device Short NameRXG
Complementary
- Utilisation Coefficient
- 20 %
- Safety Reliability Data
- B10d = 100000
- Average Consumption
- 0.82 VA 60 Hz
- Operating Rate
- <= 1800 cycles/hour under load || <= 18000 cycles/hour no-load
- Protection Category
- RT I
- Contacts Material
- silver alloy (AgSnO2In2O3)
- Shock Resistance
- 20 gn in operation || 100 gn not in operation
- Status Led
- with
- Colour Of Cover
- standard
- Device Presentation
- complete product
- [Ui] Rated Insulation Voltage
- 250 V IEC || 300 V CSA || 300 V UL
- Mechanical Durability
- 10000000 cycles
- Control Circuit Voltage Limits
- 0.8...1.1 Uc AC
- Overvoltage Category
- III
- Drop-Out Voltage Threshold
- >= 0.3 Uc AC
Maximum Switching Capacity1250 VA
[Uc] Control Circuit Voltage48 V AC 50/60 Hz
Insulation Resistance1000 MOhm 500 V DC
Torque Value0.8 N.m
Test Levelslevel A group mounting
Pollution Degree2
Dielectric Strength1000 V AC between contacts micro disconnection || 5000 V AC between coil and contact reinforced insulation || 3000 V AC between poles basic insulation
Net Weight0.02 kg
Maximum Switching Voltage250 V AC || 30 V DC
[Ie] Rated Operational Current5 A 30 V DC) UL || 5 A 30 V DC) IEC || 5 A 250 V AC) IEC || 5 A 250 V AC) UL
Electrical Durability100000 cycles NO resistive at 55 °C || 100000 cycles NC resistive at 55 °C
Resistance1100 Ohm +/- 10 %
Mounting Positionany position
Load Current5 A 250 V AC
Minimum Switching Capacity50 mW 10 mA, 5 V DC
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1406006EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Environment
- Product Certifications
- UL || EAC || CSA || CE || DNV-GL
- Standards
- IEC 61810-1 || CSA C22.2 No 14 || UL 508
- Relative Humidity
- 10-85 %
- Ip Degree Of Protection
- IP40
Ambient Air Temperature For Operation-40-70 °C
Vibration Resistance3 gn +/- 0.75 mm 10-150 Hz)in operation || 5 gn +/- 0.75 mm 10-150 Hz)not in operation
Ambient Air Temperature For Storage-40-85 °C
