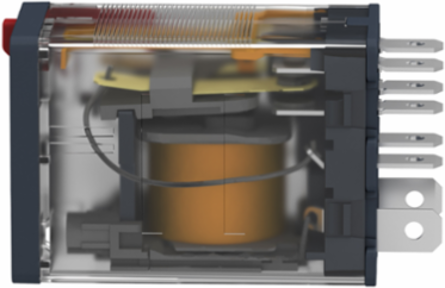

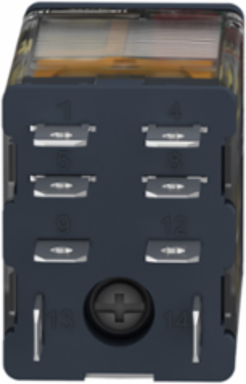

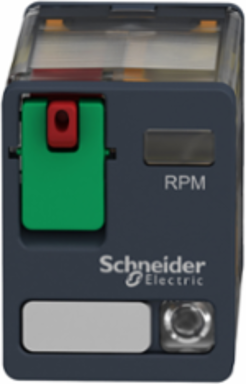

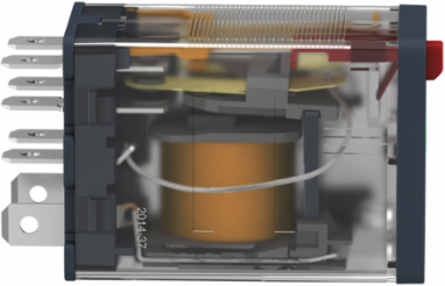

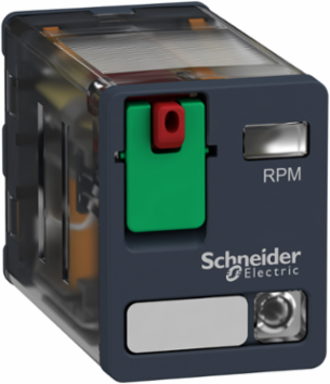

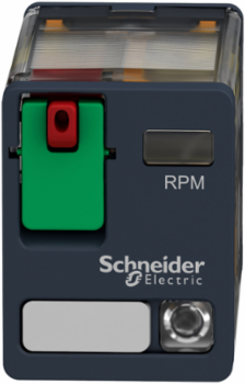

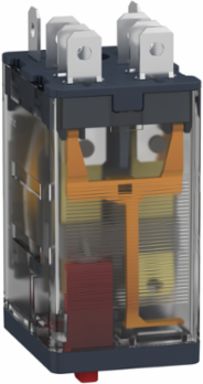

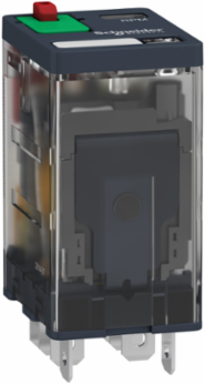

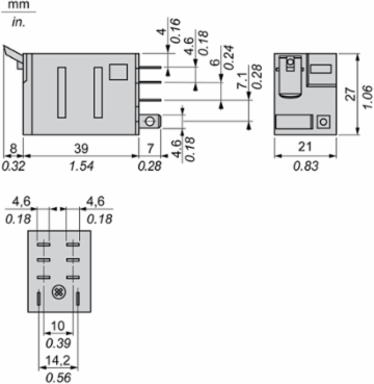

Schneider Electric RPM22F7 Harmony Plug-in Relay, 15A, 120V AC, 2CO, Lockable Test Button, LED Indicator

MPN: RPM22F7
PPN: SCH-RPM22F7

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$25.88

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs). Status display with LED, clearly signal both in the day and night. 0 0 0 0 0 0 0 0 0

Features

The Schneider RPM22F7 is a high-performance, plug-in power relay from the Harmony RP range. Unlike standard control relays, the RPM series is designed to handle higher current loads, making it suitable for direct control of small motors, heaters, and heavy solenoids.
The "22" in the part number indicates the contact arrangement: 2 C/O (Changeover) or DPDT (Double Pole Double Throw) contacts. This means you have two independent sets of contacts that can switch between a Normally Open (NO) and Normally Closed (NC) state, providing great flexibility for interlocking or reversing circuits.
The "F7" suffix specifies that the relay's coil operates on 120V AC at 50/60 Hz. This is the standard control voltage for most Canadian and North American industrial panels, allowing for direct integration without additional power supplies.
Each pole of the RPM22F7 is rated for a conventional thermal current ($I_{th}$) of 15 Amps. This high current rating allows it to switch loads that would typically require a larger, more expensive contactor, yet it remains in a compact, plug-in relay format.
his relay features several built-in maintenance tools: Lockable Test Button: Allows you to manually force the contacts to change state for circuit testing. Mechanical Indicator: A small orange flag provides a visual confirmation of the contact status. LED Indicator: A bright LED lights up when the coil is energized, making troubleshooting in dark panels much easier.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, China, France, Singapore, United States

Complementary Attributes

Maximum Switching Capacity	3750 VA, 420 W
Line Rated Current	15 A
Minimum Switching Capacity	170 mW 10 mA, 17 V

Control Circuit Type	AC
Maximum Switching Voltage	250 V IEC
Rated Operational Voltage Limits	96...132 V AC

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	lockable test button, lockable test button
Operating Rate	<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 1200 cycles/hour under load, <= 1200 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load
Contacts Composition	2 C/O
[Ie] Rated Operational Current	15 A 28 V DC) NO IEC7.5 A 28 V DC) NC IEC, 15 A 277 V AC) UL15 A 28 V DC) UL, 15 A 250 V AC) NO IEC7.5 A 250 V AC) NC IEC
[Ui] Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Carbon Footprint Of The Distribution Phase [A4]	0.0047738433, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0001204075
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	17 kg CO2 eq., 16.7832856495
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	4430 Ohm at 20 °C +/- 15 %
Contacts Material	AgNi
Electrical Durability	100000 cycles resistive
Mechanical Durability	10000000 cycles
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	power relay
Returnability	Yes
Series Name	RPM series
Shock Resistance	15 gnin operation30 gnnot operating
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	17 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation5 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Pep Code	ENVPEP2506026EN
Pep Verification Date	2018-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	20
Energy Model - Installation [A5]	Electricity mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; <lt/> 1kV; EU-27
[Ithe] Conventional Enclosed Thermal Current	15 A -40-55 °C
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536507000

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Dielectric Strength	1500 V AC between contacts with micro disconnection, 2000 V AC between coil and contact with reinforced2000 V AC between poles with basic
Status Led	with, with
Certificate Agency	EAC, CSA, UL
[Uc] Control Circuit Voltage	AC 50/60 Hz, 120 V
Drop-out Voltage Threshold	>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.004961606, 0 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	0.4 kg CO2 eq., 0.3540445376
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption In Va	1.1 60 Hz
Compatibility Code	RPM
Contacts Type And Composition	2 C/O
Load Current	15 A 250 V AC15 A 28 V DC
Mounting Support	plug-in
Operating Time	20 ms at nominal voltage
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms at nominal voltage
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat (faston type)
Software Version	EIME 5.7.0.2
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Control Circuit Voltage	120 V
Database Version	2018-03
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 30% use rate, in compliance with French standards.
Functional-unit Unit	unité (unit)
Energy Model - Manufacturing [A1-a3]	Energy model used: China
Energy Model - Use [B6]	Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	68
[Uimp] Rated Impulse Withstand Voltage	4 kV 1.2/50 µs
Package Weight(Lbs)	40.506 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	ENVPEP2506026EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	17.1471860439
Environmental Disclosure	ENVPEP2506026EN
Ip Degree Of Protection	IP40 conforming to IEC 60529
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2018-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
