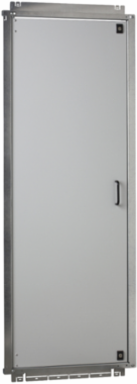

Schneider Electric NSYID1810 Internal Door 1800mm x 1000mm, Sheet Steel, Max Load 15 kg/m2
- MPN: NSYID1810
- PPN: SCH-NSYID1810
CAD
$1104.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Spacial SF/SM plain internal door. 1799 x 1000 mm. Multi-purpose application. Front mounting location. Maximum load 15 kg/m². 2 locks with 3 mm double bar insert system. Adjustable in depth every 25 mm. Sheet steel made. Grey RAL 7035. Door, handle, fixing elements incl.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Spain
- Width
- 35.43 in
Height65.55 in
Depth19.5 mm
Physical Attributes
- Color
- Gray RAL 7035)
Complementary Attributes
- Maximum Load
- 15 kg/m²
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, 2 lock with 3 mm double bar insert, 1 handle, fixing elements
- Carbon Footprint Of The Distribution Phase [A4]
- 5.004955414, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 5.765083821, 6 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- multi-purpose
- Door Type
- internal plain
- Lock Type
- lock 3 mm double bar
- Mounting Location
- front
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quantity Per Set
- set of 1
- Returnability
- No
- Surface Finish
- epoxy-polyester powder
- Total Lifecycle Carbon Footprint
- 185 kg CO2 eq.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- nominal: 1800 mm
- Width Nominal
- nominal: 1000 mm
- Accessory / Separate Part Category
- enclosure accessory
- Package Weight(Lbs)
- 33.400 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End-of-life Phase [C1 To C4]61 kg CO2 eq., 61.1220377
Carbon Footprint Of The Manufacturing Phase [A1 To A3]113 kg CO2 eq., 112.9730801
Local Data StatusPublishable
Return IndicatorN
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Adjustmentadjustable in depth every 25 mm
Door Opening Sidereversible
Energy Efficiency OptimizedFalse
Materialsheet steel
Number Of Locks2
Product Or Component Typedoor
RangePanelSeT
Software Versionv5.9.4
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Height Usefulreal: 1665 mm
Width Realreal: 900 mm
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 184.865157
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- door
ETIM
- ETIM 8
- EC000747
ETIM 9EC000747
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
