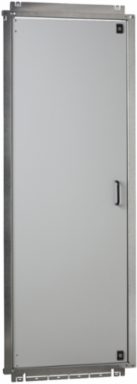

Schneider Electric NSYID208 Internal Door for PanelSeT SF/SM Enclosures, 1999 x 800 mm, 2 Locks, Sheet Steel
- MPN: NSYID208
- PPN: SCH-NSYID208
CAD
$923.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Spacial SF/SM plain internal door. 1999 x 800 mm. Multi-purpose application. Front mounting location. Maximum load 15 kg/m². 2 locks with 3 mm double bar insert system. Adjustable in depth every 25 mm. Sheet steel made. Grey RAL 7035. Door, handle, fixing elements incl.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Spain |
|---|---|
| Width | 27.56 in |
| Height | 73.43 in |
|---|---|
| Depth | 19.5 mm |
Physical Attributes
| Color | Gray RAL 7035) |
|---|
Complementary Attributes
| Maximum Load | 15 kg/m² |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Device Composition | 1 door2 lock with 3 mm double bar insert, 1 handle, fixing elements |
| Carbon Footprint Of The Distribution Phase [A4] | 5.197453699, 5 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 5.986817814, 6 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Stocking Flag | Y |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1912 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Adjustment | adjustable in depth every 25 mm |
| Door Opening Side | reversible |
| Energy Efficiency Optimized | False |
| Material | sheet steel |
| Number Of Locks | 2 |
| Product Or Component Type | door |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1109023EN |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 98 |
| Height Useful | real: 1865 mm |
| Width Real | real: 700 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 9403999045 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Enclosure Nominal Dimensions | -, - |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 63 kg CO2 eq., 63.47288531 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 117 kg CO2 eq., 117.3181986 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | multi-purpose |
| Door Type | internal plain |
| Lock Type | lock 3 mm double bar |
| Mounting Location | front |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | set of 1 |
| Returnability | No |
| Surface Finish | epoxy-polyester powder |
| Total Lifecycle Carbon Footprint | 192 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Height Nominal | nominal: 2000 mm |
| Width Nominal | nominal: 800 mm |
| Accessory / Separate Part Category | enclosure accessory |
| Package Weight(Lbs) | 31.600 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Carbon Footprint | 191.9753554 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | door |
|---|
ETIM
| ETIM 8 | EC000747 |
|---|
| ETIM 9 | EC000747 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
