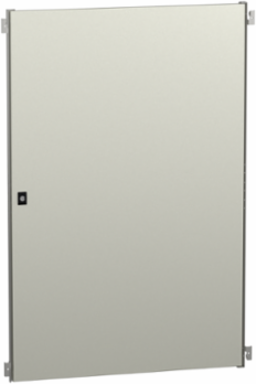

Schneider Electric NSYPIN128 Internal Steel Door 1200 x 800 mm, RAL7035, Maximum Load 30 kg/m²
- MPN: NSYPIN128
- PPN: SCH-NSYPIN128
CAD
$402.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description

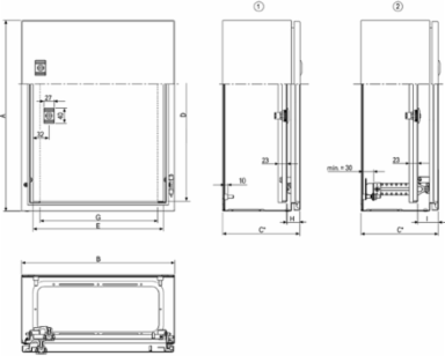

Internal door for Spacial WM steel enclosures (CRN, S3D, S3X). Enclosures H is1200 x W is800 mm. Multi-purpose application. Maximum load 30 kg/m². 1 lock, 3 mm double bar insert. Step slides or front side mounting location. Adjustment is pitch 25 mm (on step slides). Sheet steel made. Grey RAL 7035. Door, 4 fixing brackets, 2 mounting uprights incl.
Documentation & Downloads
Specifications
Key Specifications
- Range Compatibility
- Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X
- Product Or Component Type
- door
- Device Application
- multi-purpose
- Mounting Location
- front side || step slide
Accessory / Separate Part Categoryenclosure accessory
Device Composition1 door || 4 fixing brackets || 2 mounting uprights
RangeSpacial
Complementary
- Adjustment
- pitch 25 mm (on step slides)
- Width
- nominal 800 mm
- Material
- door sheet steel
- Maximum Load
- 30 kg/m²
- Lock Type
- lock 3 mm double bar
- Net Weight
- 13.6 kg
Number Of Locks1
Heightnominal 1200 mm
Surface Finishpolyester powder
Colourall faces grey RAL 7035)
Door Typeinternal plain
Door Opening Sidereversible
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP100104EN
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Contractual warranty
- Warranty
- 18 months
