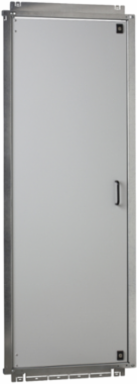

Schneider Electric NSYID188 Inner Door 1799 x 800 mm for Electrical Enclosure, 15 kg/m2 Load Capacity

MPN: NSYID188
PPN: SCH-NSYID188
UNSPSC: 39121327

$905.38

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Spacial SF/SM plain internal door. 1799 x 800 mm. Multi-purpose application. Front mounting location. Maximum load 15 kg/m². 2 locks with 3 mm double bar insert system. Adjustable in depth every 25 mm. Sheet steel made. Grey RAL 7035. Door, handle, fixing elements incl.

Features

Door for additional protection. Prevents the switchgear from being manipulated by unauthorised personnel.
Allows the installation of switchgear mounted directly on the door.
Mounting on the top and bottom frame of the enclosure.
Depth adjustable with a pitch of 25 mm, from the first fixing point.
Opening to right or left, with two locks, 3-mm double-bar, with central handle.
Reinforcement frames on the rear, cut-outs with a 25 mm pitch, for equipping the door.
Maximum acceptable load: 15 kg.
Inner doors can be mounted in our stainless-steel floor-standing enclosures (SFX and SMX).
Material: Steel
Finish: Structured finish, epoxy polyester powder

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Spain
Width	27.56 in
Depth	19.5 mm

Height	65.55 in
Weight	25500 g

Physical Attributes

Color	Gray RAL 7035)

Complementary Attributes

Maximum Load	15 kg/m²

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Composition	1 door2 lock with 3 mm double bar insert, 1 handle, fixing elements
Carbon Footprint Of The Distribution Phase A4	4.908706272, 5 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	5.654216825, 6 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-04-15
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Adjustment	adjustable in depth every 25 mm
Door Opening Side	reversible
Energy Efficiency Optimized	False
Material	sheet steel
Number Of Locks	2
Product Or Component Type	door
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Database Version	2022-01
Height Nominal	nominal: 1800 mm
Width Nominal	nominal: 800 mm
Accessory / Separate Part Category	enclosure accessory
Customs Code	9403999045
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional Unit Unit	unit
Recyclability Potential In %	98

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Enclosure Nominal Dimensions	-, -
Carbon Footprint Of The End Of Life Phase C1 To C4	60 kg CO2 eq., 59.9466139
Carbon Footprint Of The Manufacturing Phase A1 To A3	111 kg CO2 eq., 110.8005209
Local Data Status	Publishable
Return Indicator	N
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Device Application	multi-purpose
Door Type	internal plain
Lock Type	lock 3 mm double bar
Mounting Location	front
Product Availability	Non-Stock - Not normally stocked in distribution facility
Quantity Per Set	set of 1
Returnability	No
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	181 kg CO2 eq.
Data Source	extrapolated product
Height Useful	real: 1665 mm
Width Real	real: 700 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Carbon Footprint	181.3100579
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1109023EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Environmental Disclosure	ENVPEP1109023EN
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-03-30
Psr Version	PSR-0005-ed2-2016 03 29
