Schneider Electric NSYID206 Spacial SF Internal Door 1999x600mm, Sheet Steel, Max Load 15 kg/m²
Schneider Electric NSYID206 Spacial SF Internal Door 1999x600mm, Sheet Steel, Max Load 15 kg/m²
- MPN: NSYID206
- PPN: SCH-NSYID206
- UNSPSC: 39121327
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$804.12/ EA
Description

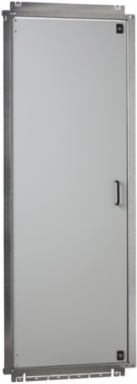

Spacial SF/SM plain internal door. 1999 x 600 mm. Multi-purpose application. Front mounting location. Maximum load 15 kg/m². 2 locks with 3 mm double bar insert system. Adjustable in depth every 25 mm. Sheet steel made. Grey RAL 7035. Door, handle, fixing elements incl.
Specifications
Physical Attributes
- Color
- Gray RAL 7035)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- 1 door, 2 lock with 3 mm double bar insert, 1 handle, fixing elements
- Carbon Footprint Of The Distribution Phase A4
- 4.619958844, 5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 5.321615835, 5 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2025-07-10
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option Id
- STANDARD
- Door Opening Side
- reversible
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 26.000 kg
- Product Or Component Type
- door
- Returnability
- No
- Total Lifecycle Carbon Footprint
- 171 kg CO2 eq.
- Pep Verification Date
- 2023-03-30
- PSR Version
- PSR-0005-ed2-2016 03 29
- Functional Unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Product Kit Identifier
- N
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Range CompatibilityPanelSeT SFX, PanelSeT SF, PanelSeT SM
Carbon Footprint Of The End Of Life Phase C1 To C456 kg CO2 eq., 56.4203425
Carbon Footprint Of The Manufacturing Phase A1 To A3104 kg CO2 eq., 104.2828432
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Enclosure Nominal Dimensions-
Materialsheet steel
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangePanelSeT
Sustainable PackagingNo
Pep CodeENVPEP1109023EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit Unitunit
Product ManagerJULES BARBALONGA
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Pro-active compliance (Product out of EU RoHS legal scope)
- Take Back
- No
- China ROHS Regulation
- X
- Carbon Footprint
- 170.6447603
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-03-30
- PSR Version
- PSR-0005-ed2-2016 03 29
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1109023EN
Packaging Without Single Use PlasticNo
Pep CodeENVPEP1109023EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- door
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Height
- 73.43 in
- Depth
- 0.77 in
Width19.69 in
