Schneider Electric

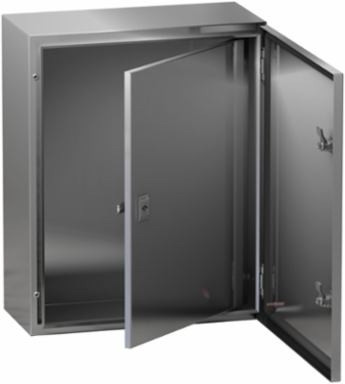

Schneider Electric NSYPIN43 Internal door for Spacial WM encl. H400xW300 steel, RAL7035.Adjustable in depth

Internal door for Spacial WM encl. H400xW300 steel, RAL7035.Adjustable in depth
  • MPN: NSYPIN43
  • PPN: SCH-NSYPIN43

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$150.35/ EA

Description

Internal door for Spacial WM steel enclosures (CRN, S3D, S3X). Enclosures H is400 x W is300 mm. Multi-purpose application. Maximum load 30 kg/m². 1 lock, 3 mm double bar insert. Step slides or front side mounting location. Adjustment is pitch 25 mm (on step slides). Sheet steel made. Grey RAL 7035. Door, 4 fixing brackets, 2 mounting uprights incl.

Specifications

Offer Sustainability

Rohs Exemption Information
Yes
Environmental Disclosure
ENVPEP100104EN
Reach Regulation
Reference contains Substances of Very High Concern above the threshold
Circularity Profile
N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

Contractual warranty

Warranty
18 months

Specifications

Range Compatibility
Spacial Spacial CRN || Spacial Spacial S3D || Spacial Spacial S3X
Product Or Component Type
door
Range
Spacial
Device Application
multi-purpose
Accessory / Separate Part Categoryenclosure accessory
Device Composition1 door || 4 fixing brackets || 2 mounting uprights
Mounting Locationfront side || step slide

Complementary

Adjustment
pitch 25 mm (on step slides)
Surface Finish
polyester powder
Net Weight
1.6 kg
Width
nominal 300 mm
Material
door sheet steel
Colour
all faces grey RAL 7035)
Number Of Locks1
Lock Typelock 3 mm double bar
Door Opening Sidereversible
Heightnominal 400 mm
Maximum Load30 kg/m²
Door Typeinternal plain
