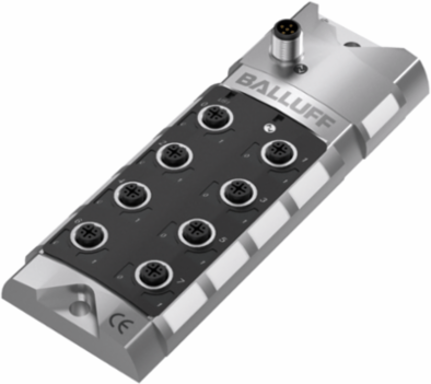

Balluff BNI IOL-104-S01-Z012-C02 IO-Link sensor/actuator hubs BNI IOL-104-S01-Z012-C02
- MPN: BNI IOL-104-S01-Z012-C02
- PPN: BAL-BNI005P
CAD
$399.56
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
| Interface | IO-Link 1.0 |
|---|---|
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Digital inputs | 16x PNP, Type 2 |
| Additional function | Single-channel monitoring, Identification 4 bytes |
| Dimension | 68 x 31.8 x 181.5 mm |
| IP rating | IP67 when threaded in |
| Process data cycle min. | 24 ms |
| Operating voltage Ub | 18-30.2 VDC |
|---|---|
| Connection ports | 8x M12x1-Female, 5-pin, A-coded |
| Configurable inputs/outputs | no |
| Housing material | Zinc, Die casting |
| Ambient temperature | -5-70 °C |
| Transfer rate | COM2 (38.4 kBaud) |
| Process data IN | 8 bytes |
