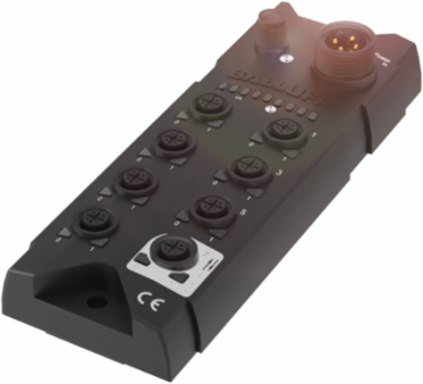

Balluff BNI IOL-302-S02-R026 IO-Link sensor/actuator hubs BNI IOL-302-S02-R026
- MPN: BNI IOL-302-S02-R026
- PPN: BAL-BNI0091
CAD
$642.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
- Interface
- IO-Link 1.1
- Connection (COM 1)
- M12x1-Male, 4-pin, A-coded
- Connection ports
- 8x M12x1-Female, 5-pin, A-coded
- Digital outputs
- 16x PNP
- Additional function
- Extension port, Single-channel monitoring
- Housing material
- PPS
- Ambient temperature
- -5-70 °C
- Transfer rate
- COM2 (38.4 kBaud)
- Process data IN
- 6 bytes
Operating voltage Ub18-30.2 VDC
Connection (supply voltage IN)7/8"-Male, 4-pin
Digital inputs16x PNP, Type 3
Configurable inputs/outputsyes
Output current max.2 A
Dimension68 x 37.6 x 183.5 mm
IP ratingIP67 when threaded in
Process data cycle min.6.0 ms
Process data OUT2 bytes
