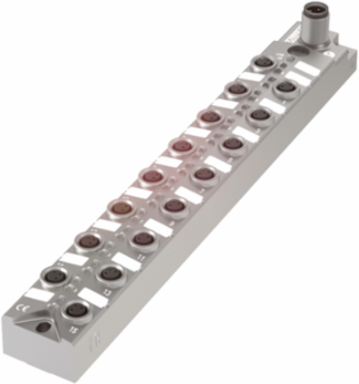

Balluff BNI IOL-302-002-Z046 IO-Link sensor/actuator hubs BNI IOL-302-002-Z046
- MPN: BNI IOL-302-002-Z046
- PPN: BAL-BNI00AU
CAD
$660.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
- Interface
- IO-Link 1.1
- Connection (COM 1)
- M12x1-Male, 4-pin, A-coded
- Digital inputs
- 16x PNP, Type 3
- Configurable inputs/outputs
- yes
- Output current max.
- 300 mA
- Dimension
- 30 x 32.8 x 220 mm
- IP rating
- IP67 when threaded in
- Process data cycle min.
- 4.0 ms
- Process data OUT
- 2 bytes
Operating voltage Ub18-30.2 VDC
Connection ports16x M8x1-Female, 3-pin
Digital outputs16x PNP
Additional functionExtension port
Housing materialZinc, Die casting
Ambient temperature-5-70 °C
Transfer rateCOM2 (38.4 kBaud)
Process data IN2 bytes
