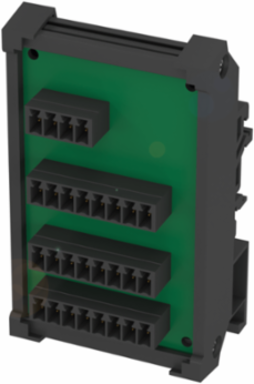

Balluff BNI IOL-309-000-K024-001 IO-Link sensor/actuator hubs BNI IOL-309-000-K024-001
- MPN: BNI IOL-309-000-K024-001
- PPN: BAL-BNI007P
CAD
$208.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Our I/O modules with their robust housings are suitable for use in a harsh industrial environment. The I/O hubs are based on M12 or M8 plug connections and are easy and economical to install and maintain.
Documentation & Downloads
Specifications
Key Specifications
- Interface
- IO-Link 1.0
- Connection (COM 1)
- Pluggable without terminals
- Connection ports
- Pluggable without terminals
- Digital outputs
- 8x PNP
- Output current max.
- 350 mA
- Dimension
- 48.6 x 33.6 x 84 mm
- IP rating
- IP20
- Process data cycle min.
- 3.0 ms
- Process data OUT
- 1 bytes
Operating voltage Ub18-30.2 VDC
Connection (supply voltage IN)Pluggable without terminals
Digital inputs8x PNP, Type 2
Configurable inputs/outputsyes
Housing materialPA 6.6, UL94V-0
Ambient temperature-5-50 °C
Transfer rateCOM2 (38.4 kBaud)
Process data IN1 byte Input
