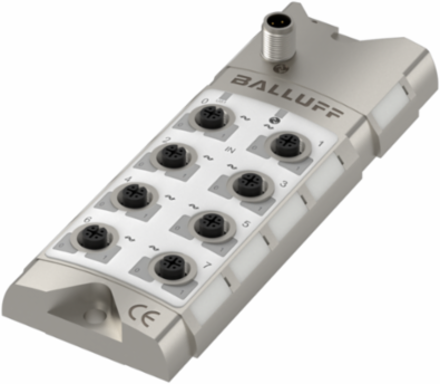

Balluff BNI IOL-719-002-Z012 IO-Link sensor/actuator hubs - BNI00AJ
- MPN: BNI IOL-719-002-Z012
- PPN: BAL-BNI00AJ
CAD
$725.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
IO-Link sensor/actuator hubs - BNI00AJ
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Hungary |
|---|---|
| Operating voltage Ub | 18...30.2 VDC |
| Connection slots | 8x M12x1-Female, 5-pin, A-coded |
| Configurable inputs/outputs | no |
| Current sum UA, actuator | 4 A |
| Dimension | 68 x 31.8 x 181.5 mm |
| IP rating | IP67, when threaded in |
| Process data cycle min. | 55 ms |
| Process data out | 1 bytes |
| Interface | IO-Link 1.1 |
|---|---|
| Connection (COM 1) | M12x1-Male, 4-pin, A-coded |
| Analog inputs | 8x Analog, voltage/analog, current/analog, temperature (0…10 V/-10…10 V/0…5 V/-5…5 V/5...10 V/4…20 mA/0…20 mA/Pt100/Pt1000/Thermocouple Type J/Thermocouple Type K) |
| Current sum US, sensor | 4 A |
| Housing material | Zinc, Die casting |
| Ambient temperature | -5...70 °C |
| Data transfer rate | COM2 (38.4 kBaud) |
| Process data in | 22 bytes |
